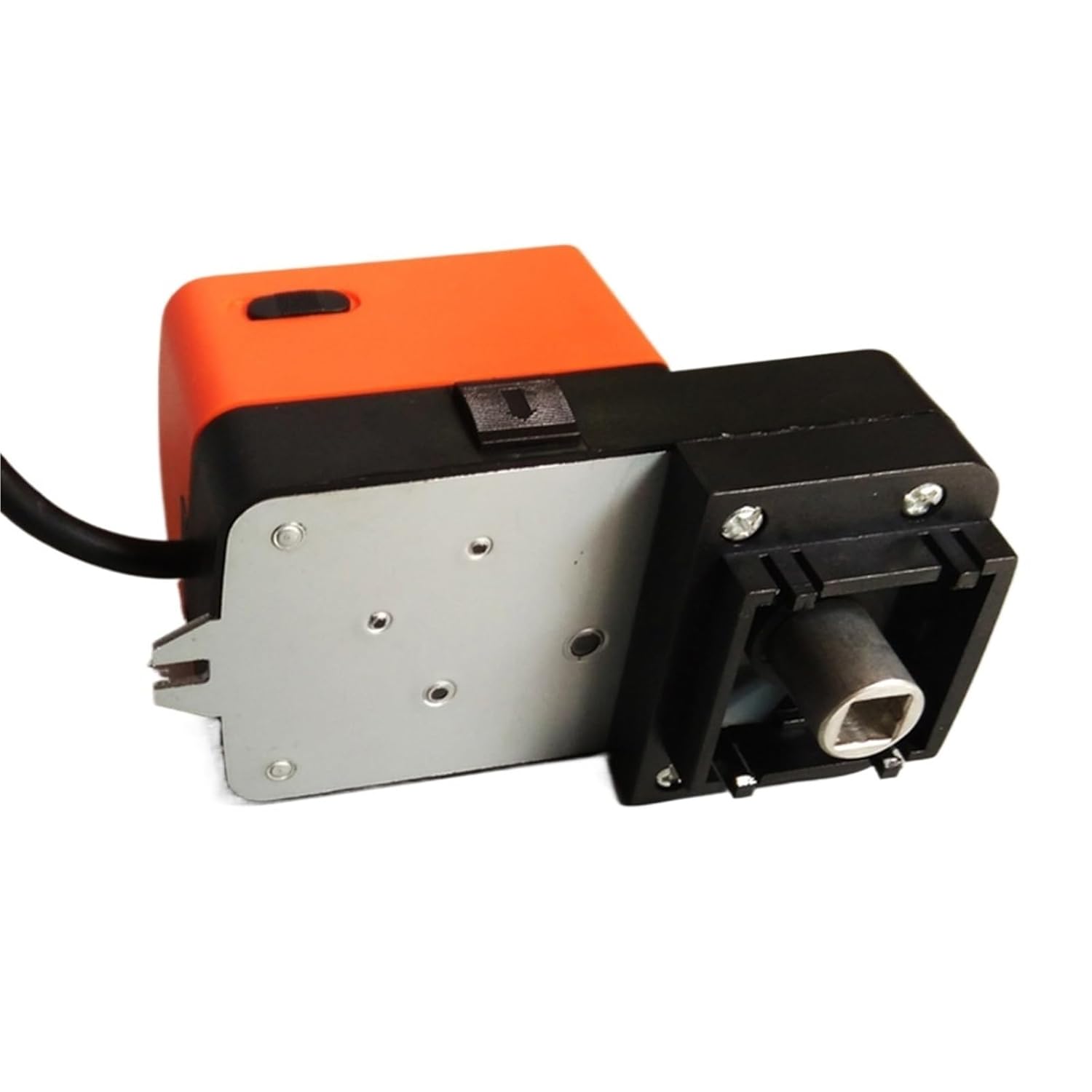

4Nm, AC/DC24V Actuator for Electric modulating Valve 0-10V modulating for Flow Regulation or on/Off Control(4-20mA)

HVAC ControlsProduct Name4Nm, AC/DC24V Actuator for electric modulating valve 0-10V modulating for flow regulation or on/off controlDescriptionEqual percentage flow characteristic guarantees the valve performances of stability. Control ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flow regulation and on/off control.ApplicationHVAC systemHeating systemWater treatment systemIndustrial equipmentsActuatorWorking voltage: 24VAC/DC±15%Input 0(2)-10VDC control signal.Out put force: 4NmAngle of rotation: 90 degree.Protection class: IP54Operation time: 50S-120SManual handle Automatic overload protection system (Manual selection of ball rotation direction: C.W. /C.C.W, setting is C.W)Flow characteristic: equal percentageFlow range: 0%-100%Black wire and brown wire are the power wire.Yellow wire accept 0-10V control signal to control the valve's open angle.Actuator and valve body matchModel No.Working VoltageActuator typeOutput ConsumptionValve bodyWVA4-30424VAC/DC±15%0(2)-10VDC4N.m3VADN25,DN20,DN15WVA4-30624VAC/DC±15%(0(2)-10VDC/0(4)-20Ma)6N.m6VADN50, DN40,DN32,WVA4-31024VAC/DC±15%(0(2)-10VDC/0(4)-20Ma)10N.m6VADN50==========Actuator Mode : With Manual And InstructionStructure : BallPort Size : DN15 to DN50Media : WaterMaterial : BrassTemperature of Media : Normal TemperaturePower : electricityStandard or Nonstandard : StandardPressure : Low PressureModel Number : TFA4-304Power : ACIs Smart Device : NoWorking voltage : AC/DC24V force : 4NmAdjusting method : 0(2) to 10V signalManual : Yes
