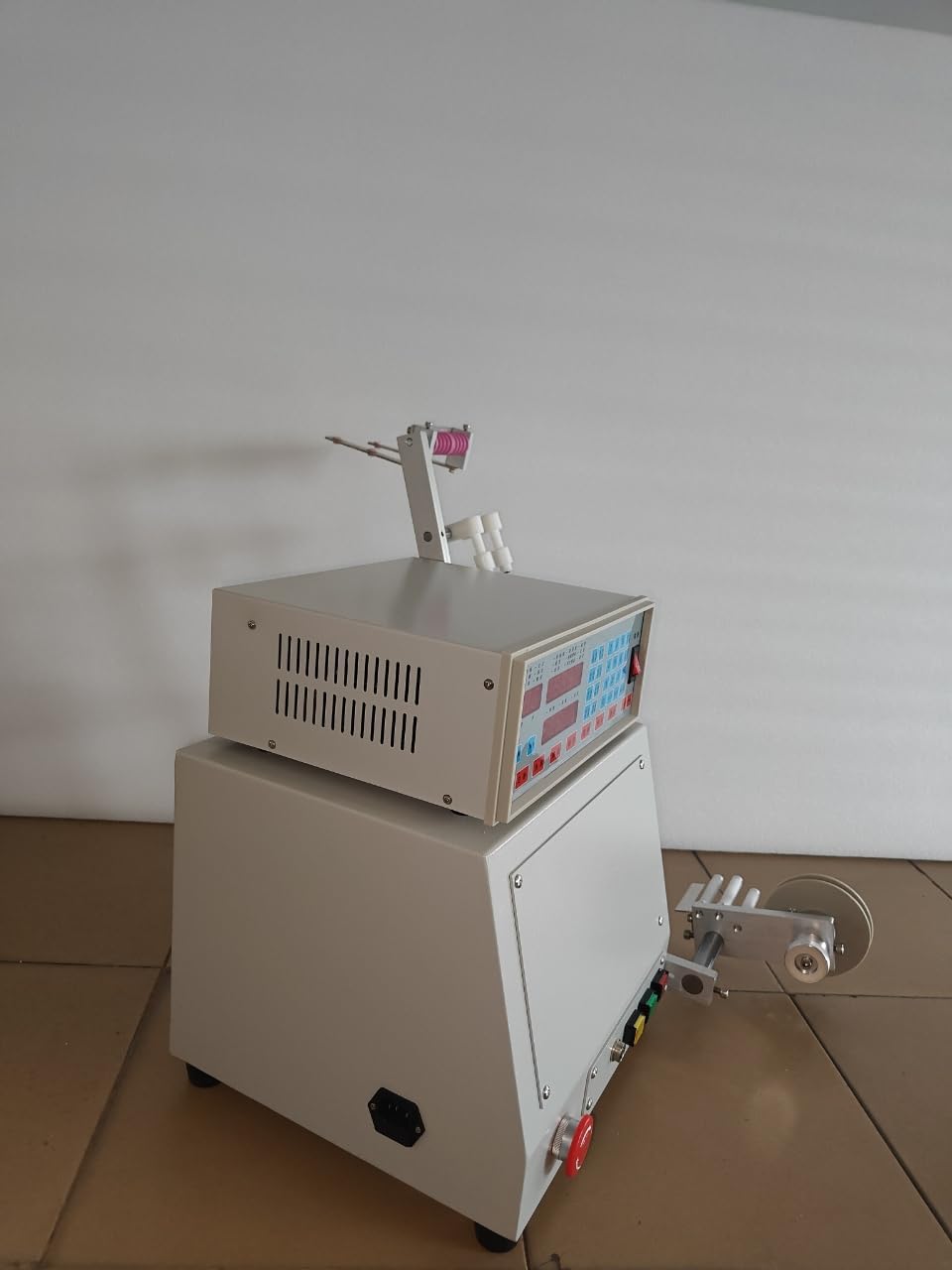

750W CNC Automatic Coil Winding Machine for Transformer & Motor - 14-46AWG Wire Gauge, 6000RPM, 110V | Auto-Wire Alignment & Digital Control​

Description Data can be set: start point, wire gauge, winding displacement width, circles, speed of starting the winding , stopping slow-speed, winding speed, slow lathe speed , winding displacement direction , winding direction , two-terminal stopping , automatic reset, automatic start (job-hopping winding). Parameter Applicable wire diameter: 17-46AWG (0.03-1.2mm) Voltage: 110V Frequency: 60Hz Main motor power: 750W Number of axes: single axis Winding width: 0-110mm Maximum rotating diameter: 200mm Speed range: 100-6000RPM Counting resolution:0.05 circle Number of memory groups: 999 Product size: 16”x13”x16”

• 【Precise control】The CNC automatic winding machine has a counting resolution of up to 0.05 RPM, and ensures the accuracy and consistency of auto-wire alignment by controlling the length, turns and tension
• 【Efficient Production】The speed of CNC coil winding machine is 100–6000 RPM adjustable. Fast and stable winding greatly improves production efficiency, can meet the needs of mass production
• 【Wide Application】Suitable for 14-46AWG metal wire, textile wire, solder wire, etc. Whether it is a small precision coil or a large industrial coil, it can do the job excellently
• 【CNC Winding Machine】Can accurately set the starting point, number of turns, width, speed, winding direction, stop at both ends, automatic reset, automatic start and other data. It can store 999 parameter steps, with power failure memory and self-check function
• 【User-Friendly & Smart Stability】Stores 999 parameter sets with power-loss memory. Built-in vernier caliper enables quick measurement of winding width and starting points. Overspeed detection automatically adjusts to stable rotation speed for worry-free operation.
