AI-30 FTTH Optic Fiber Fusion Splicer,6s Fast Welding,15s Heating,6 Motor,Automatic Core Alignment,w/5" LCD Display,7800mah Power Supply

Fourth generation Al-30 fiber fusion splicer starts up in 1 second, quickly fusions in 6 seconds, heats up in 15 seconds, has a 5" color high-definition LCD screen, 320 times magnification, and a 7800 mAh large-capacity power supply that can fusion heat 240 cores. It still performs well in harsh environments such as high altitude, dryness, and coldness.【INTELLIGENT OPTICAL FIBER FUSION SPLICER FEATURE】●With 0.05μm core alignment accuracy, 320x magnification, achieve near-zero loss: 0.02dB (SM) / 0.01dB (MM). Tackle single-mode, multi-mode, G.657, and even invisible fibers with confidence.●1-second boot, 6-second fusion, 15-second heat shrink. The 7800mAh power supply delivers 240+ splices●AI-30 fiber fusion splicer is effectively measure connection loss, verify continuity, and help assess fiber link transmission quality.●OPM can be switched between wavelength of 850nm,1300nm,1310nm,1490nm,1550nm,1625nm,980nm,1270nm, 1577nm, 1650nm.●VFL can be switched between three states, power: 15mW, 2Hz flashing and steady on mode.【SPECIFICATIONS】Name: Intelligent Fiber Fusion SplicerSize: 16.5 x 25.5 x 18.5 cmWeight: 4.5 kgNumber of motors: 6Fiber alignment accuracy: 0.05μmFusion time: 6 secondsHeating mode: 15 secondsSplicing loss: 0.02dB (SM), 0.01dB (MM) 0.04dB (DS/NZDS)Power supply capacity: 7800 mAhMagnification: 320 times (X-axis or Y-axis single display), 200 times (XY axis dual display)Display: 5" TFT color display【COMPLETE PRO KIT INCLUDES】FTTH Fiber Fusion Machine x1Burning Pliers x1Spare Electrodes x1Tool Box x1Cutter Cleaning Cotton Swabs x1Hexagon Socket x1Cleaning Brush x1Climbing Combination Hanging Chain x1Tool Box Strap x1User Manual x1

• 【EFFICIENTLY MANIPULATE & LONG-LASTING】Boost productivity with rapid 6-second splices and 15-second heats. AI-30 fusion splicer with 7800 mAh power supply supports continuous manipulate for 240+ splices/heats per charge (≤3.5h recharge)
• 【VISIBLE FIBER CORE PRECISION】Fiber splicer machine achieve splices with real-time core visualization and 0.05μm alignment accuracy; Ensures consistently ultra-low loss connections; for single-mode fiber (SMF/G 652), BIF/G.657); multi-mode, bare fiber, tail fiber, skin fber, jumper, invisible fiber fusion; Splice Loss: 0.02dB (SM) ,0.01dB (MM), 0.04dB (DS/NZDS)
• 【INTEGRATED TESTING & POWERFUL ALIGNMENT】Splicing heating machine features a Built-In Power Meter (850/1300/1310/1490/1550/1625nm + more) and Visual Fault Locator (15mW, steady/flashing) to verify loss, continuity, and link quality instantly. Auto-focus and six-motor core alignment ensuring reliability

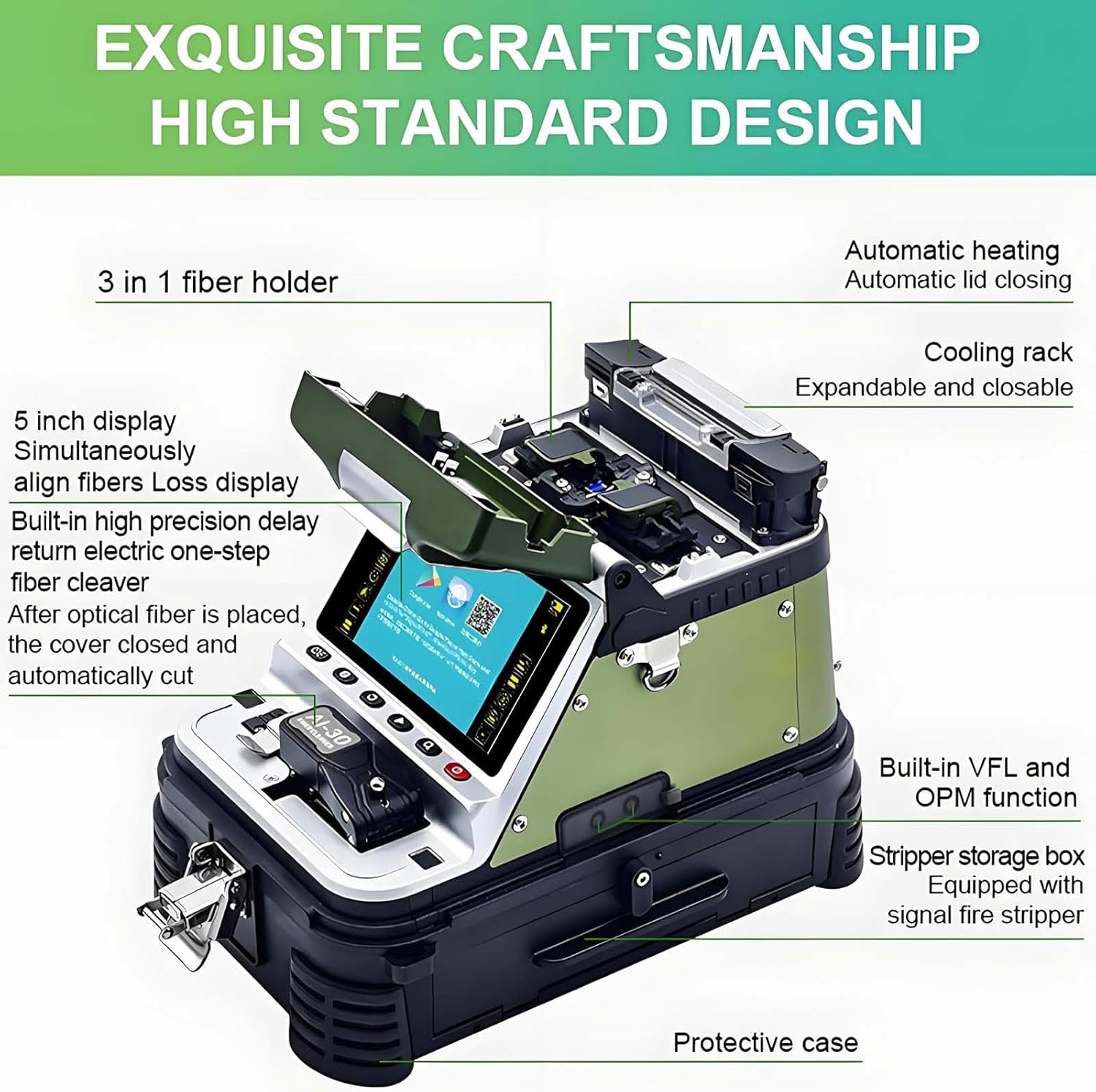

• 【EFFORTLESS & PERFECT CLEAVING】Automatic Delayed Return Cleaver eliminates end-face scratches. High-precision fiber splicing cleaver simply insert the fiber, close the lid – it cuts automatically in 0.5s (adjustable 0.2s-2s). Tip: Maintain cleaver cleanliness for peak accuracy

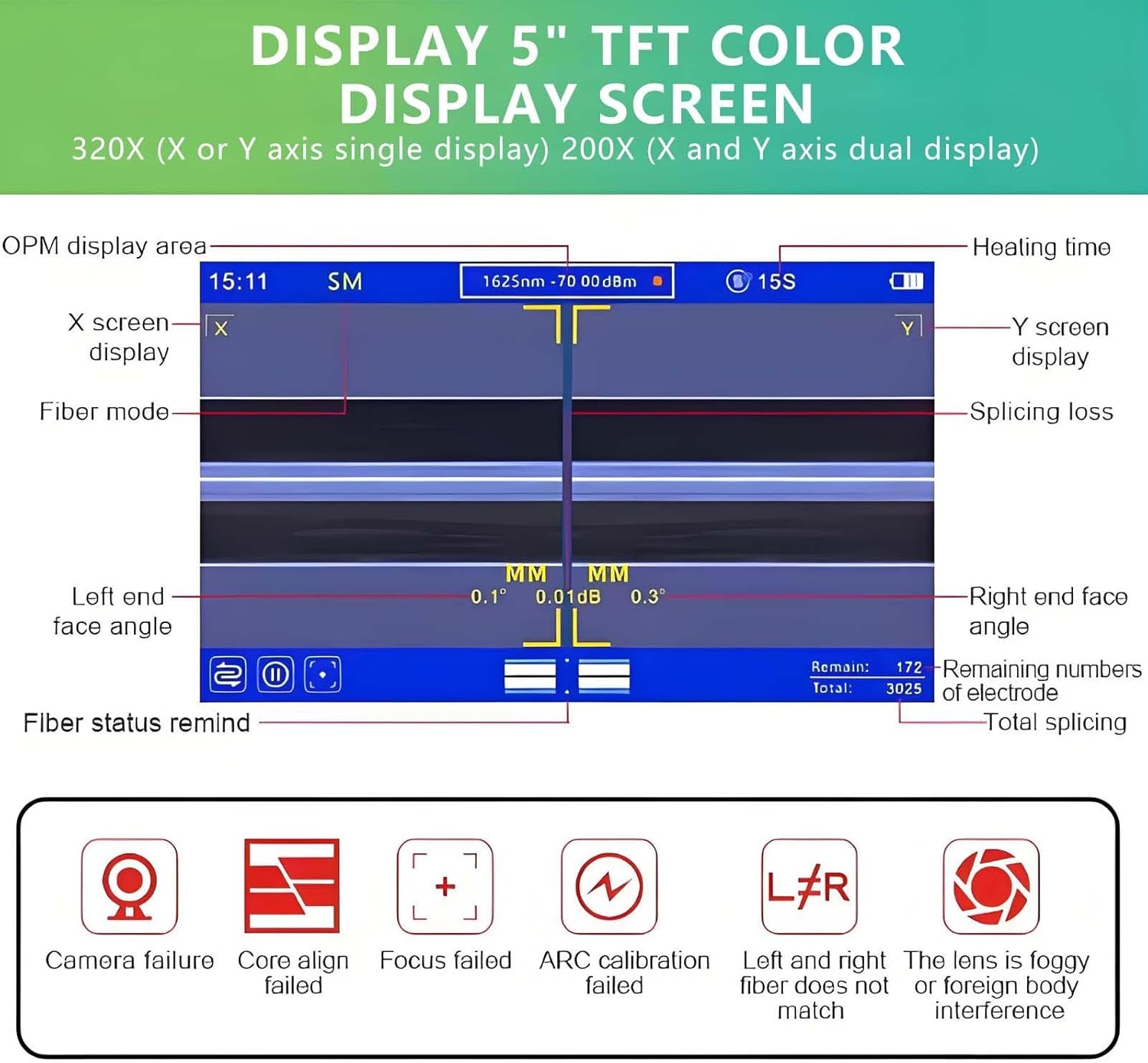

• 【INTELLIGENT INTERACTION & CLEAR LCD】Fiber optical welding machine manage projects via the mobile app; View, download, or output unlimited splice records anytime. The 5" HD screen offers crystal-clear views (up to 320x magnification)
