Amana Tool - 45797 Carbide Tipped Double Edge Folding V-Groove 108 Deg x 0.090" Tip Wi
5.0 (61 items)
Limited Time SaleUS$32.90 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216492023 | Release Date | 2026/04/19 | List Price | US$21.93 | Model Number | 216492023 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

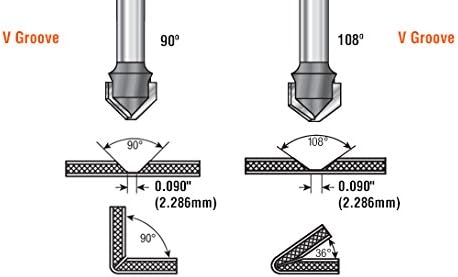

Designed for shaping aluminum composite (sandwich) materials (ACM) with 108° angle v-grooves with Flat bottoms. Routing v-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows Folding/creasing the remaining material by hand. Ideal for wall panel fabrication., ACM is widely used for cladding many diverse exterior and interior applications such as office buildings, hospitals, convention centers, airports, and hotels. The long lasting durability of the material makes it an excellent choice for buildings, signage, displays, etc., #45797, diameter (D) 1/2, angle (a°) 108°, cutting Height (B) 3/8, shank (D) 1/2, overall length (L) 2-3/64, B1 5/32, Type carbide Tipped V-Groove, Max RPM 28, 000, flutes 2, D1 0.090", A1° 36°, carbide Tipped double edge Folding V-Groove 108 deg X 0.090 inch tip width x 3/8 x 1/2 dia. X 1/2 inch Shank
- Diameter (D) 1/2
- Angle (a°) 108°
- Cutting height (B) 3/8
- Shank (D) 1/2
- Overall length (L) 2-3/64
| Size | 3/8 CH x 1/2 D x 1/2 Inch SHK |
|---|---|
| Finish | Aluminum |
| Material | Carbide |
| Item Weight | 1.6 ounces |
| Part Number | 45797 |
| Manufacturer | Amana Tool |
| Item model number | 45797 |
| Batteries Included | No |
| Batteries Required | No |
| Package Dimensions | 5.71 x 1.89 x 0.43 inches |
| Included Components | 1 Amana Branded Tool |
| Item Package Quantity | 1 |
