Base Board for Raspberry Pi Compute Module 5 Lite/eMMC Series Module, Same Size as CM5, with Multiple Peripheral Interfaces, Suitable for Evaluating CM5 or Being Integrated into End Products

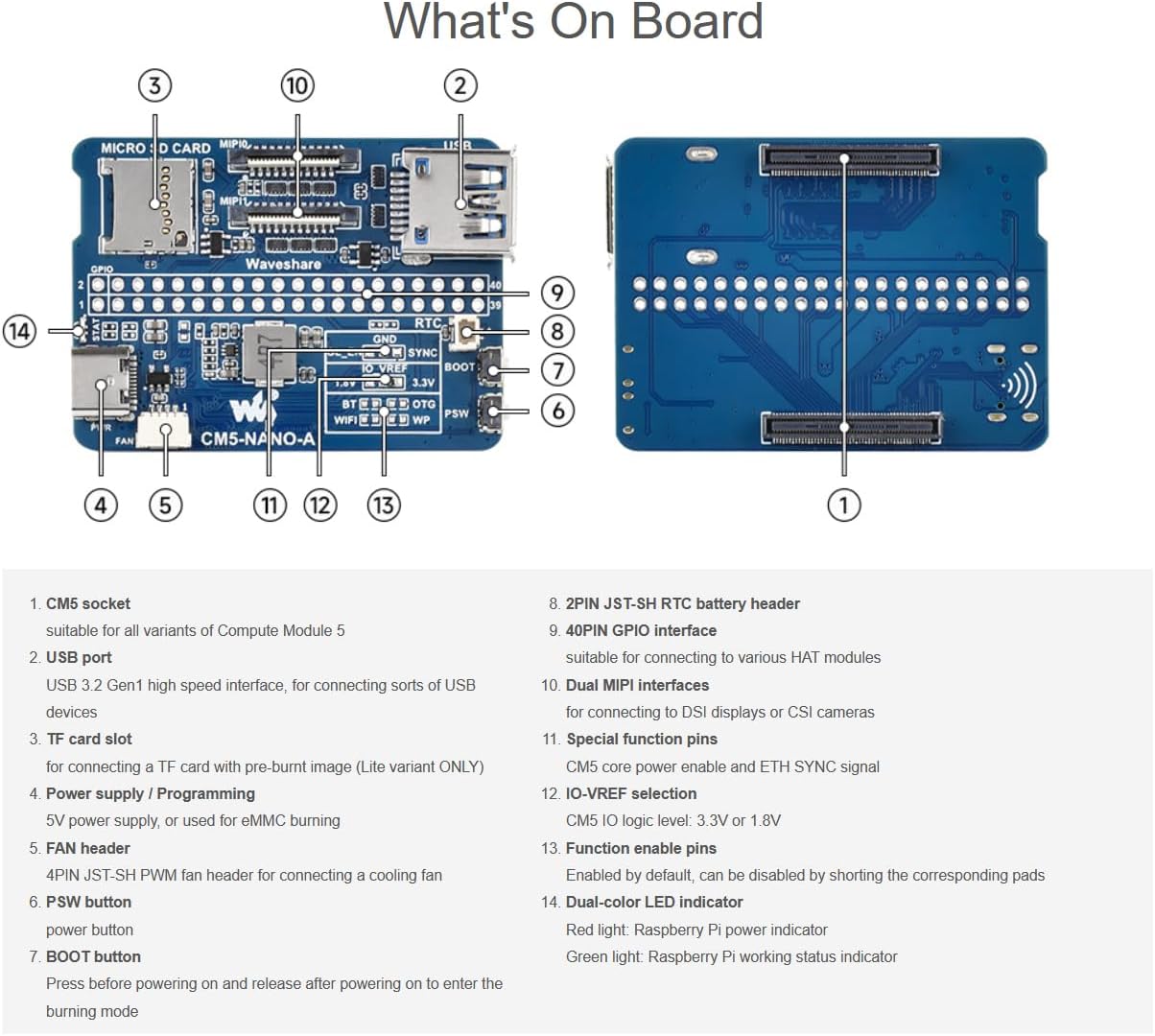

Overview Nano Base Board (A) for Raspberry Pi Compute Module 5 Lite / eMMC Series Module, Same Size As The CM5, Suitable For Evaluating CM5 Or Being Integrated Into End Products Specifications CM5 socket-- suitable for all variants of Compute Module 5 Connector-- 40PIN GPIO interface × 1 USB-- USB 3.2 Gen1 Type A port × 1 MIPI-- MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector) Storage-- TF card socket for Compute Module 5 Lite (without eMMC) variants Power input-- 5V Dimensions-- 55 × 40mm Package Content CM5-NANO-A x1 2*20PIN color-coded straight pinheader x1 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!

• Nano Base Board for Raspberry Pi Compute Module 5 Lite / eMMC, same size as the CM5, suitable for evaluating the Rasp Pi CM5 or being integrated into end products
• CM5 Nano Base Board with CM5 socket, suitable for all variants of Compute Module 5, onboard 40PIN GPIO interface, suitable for connecting to various HAT modules
• Onboard USB 3.2 Gen1 high speed interface, for connecting sorts of USB devices
• Onboard Dual MIPI interfaces, for connecting to DSI displays or CSI cameras
• Compact size and fully functional, with multiple peripheral interfaces, suitable for narrow application environments
