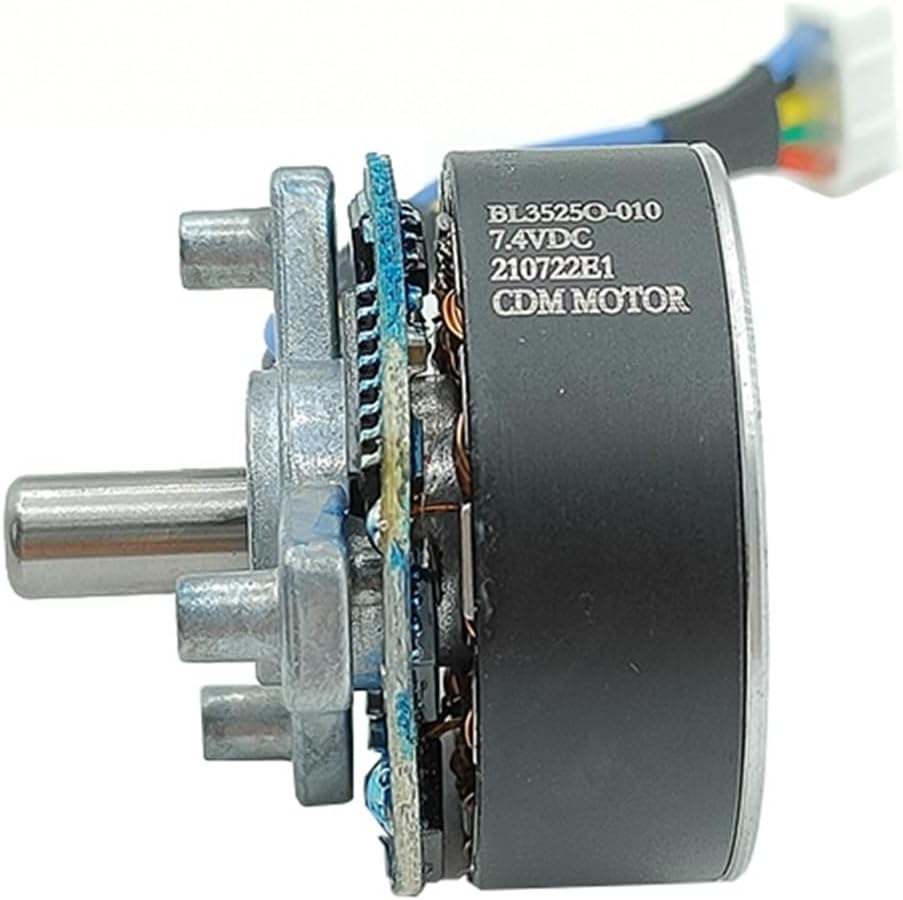

BL3525O Mirco Brushless Motor DC 7.4 V Self-contained Drive Large Torque Neodymium Iron Boron High Strength Magnetic 1Pcs

Motor StartersMotor outside diameter: 35mmMotor shaft diameter: 6mm (flat 5mm)Line length: about 60mmMotor weight: 67 gramsMotor steering: CWThis motor can run normally in DC6V-12V. If the red line is connected to the positive pole, the black line and the blue line are connected to the negative pole, the motor runs at the highest speed. (below 6V cannot start)Voltage: DC6V No-load Current: 0.25 A Maximum Speed: 3100 RPMVoltage: DC7.4V No-load Current: 0.22 A Maximum Speed: 3100 RPMVoltage: DC9V No-load Current: 0.19 A Maximum Speed: 3100 RPMVoltage: DC12V No-load Current: 0.16 A Maximum Speed: 3100 RPMIf the PWM signal is input on the blue line, the negative pole of the PWM signal should also be connected to the black line in parallel, then the duty cycle can be adjusted.The following measured different duty cycle speed:30% 3100 to 0.22 A40% 2930 to 0.21 A60% 2390 to 0.17 A80% 1840 to 0.14 A99% 1300 to 0.10 A======================================Package List:Motor x 1pcs
