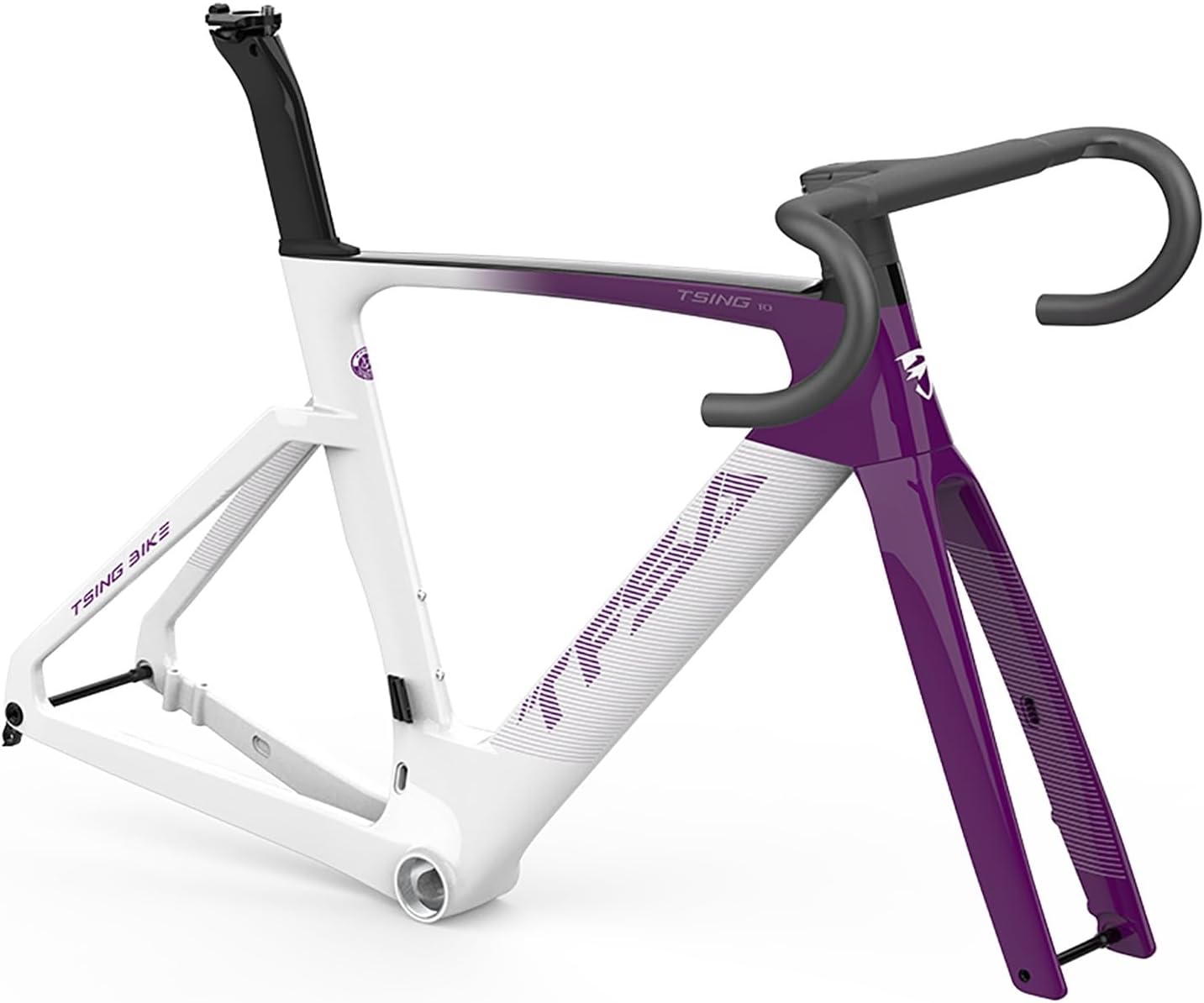

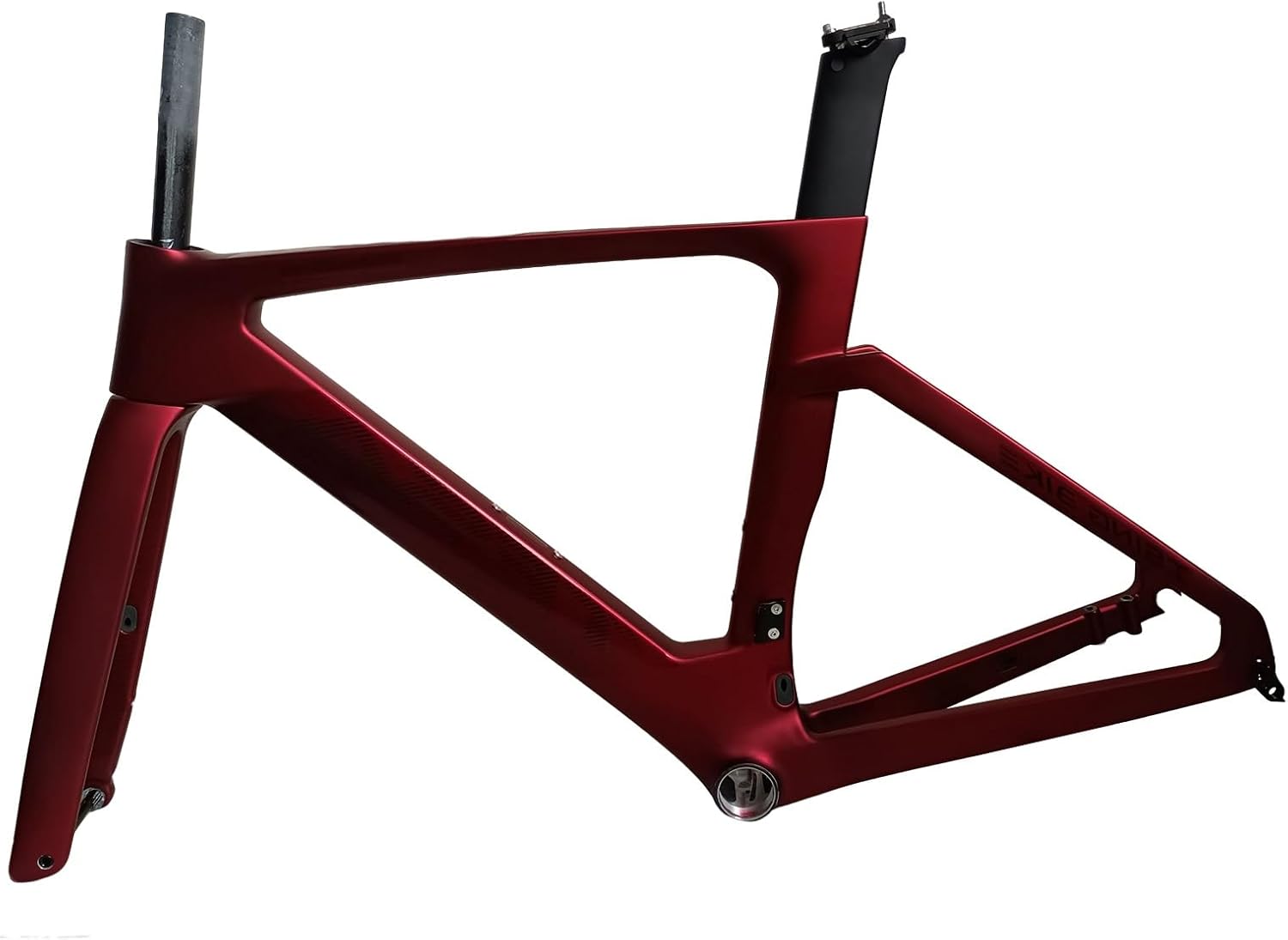

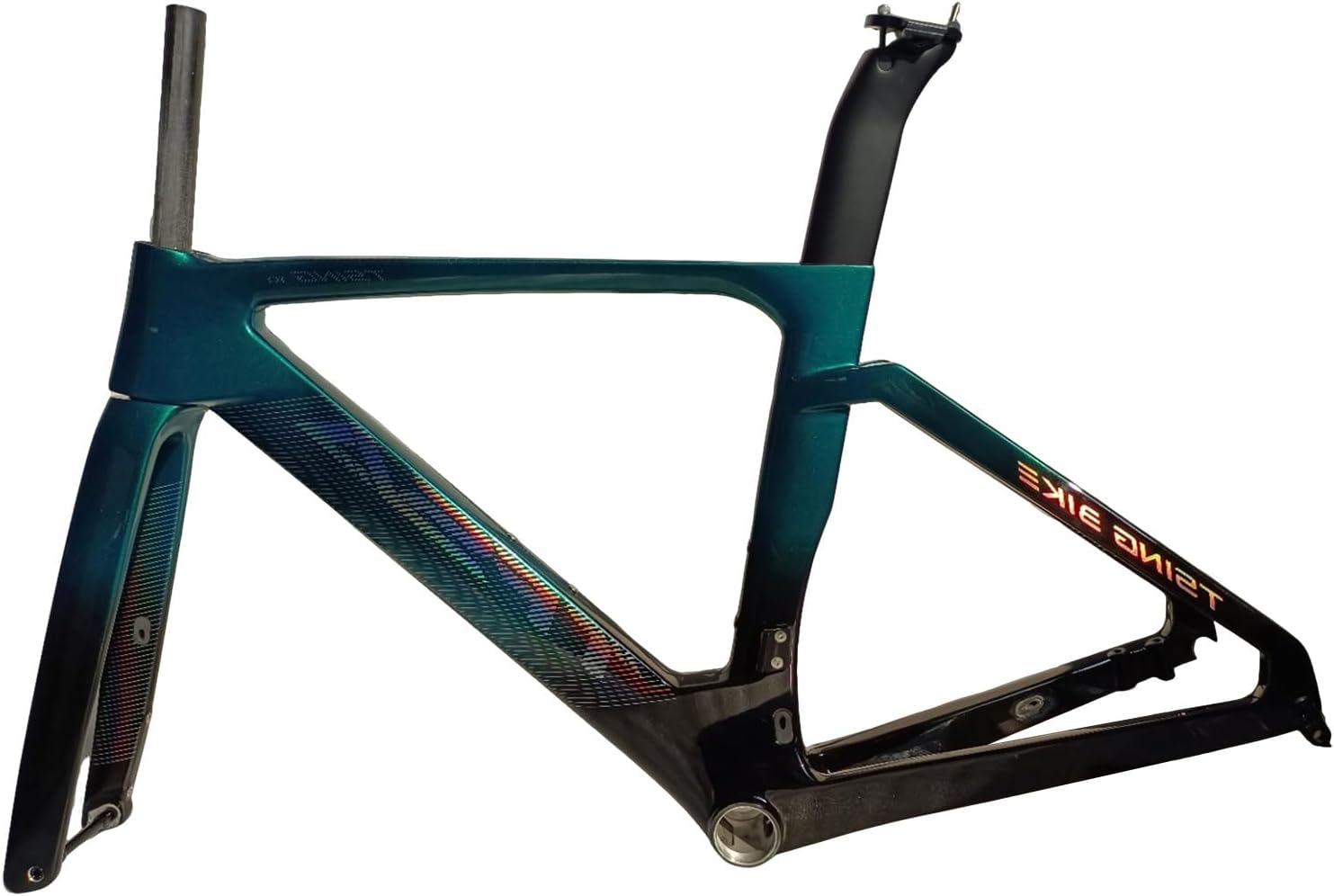

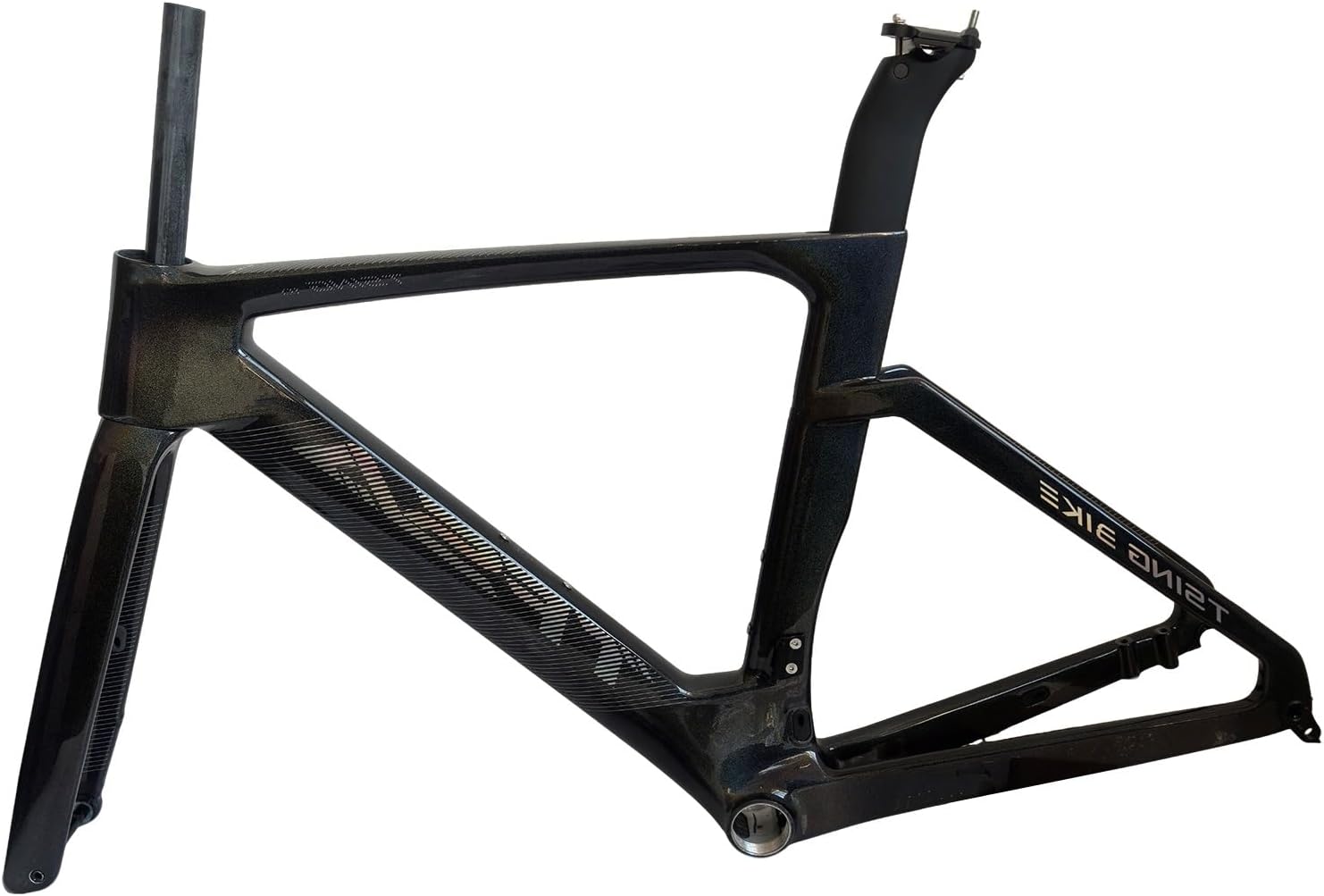

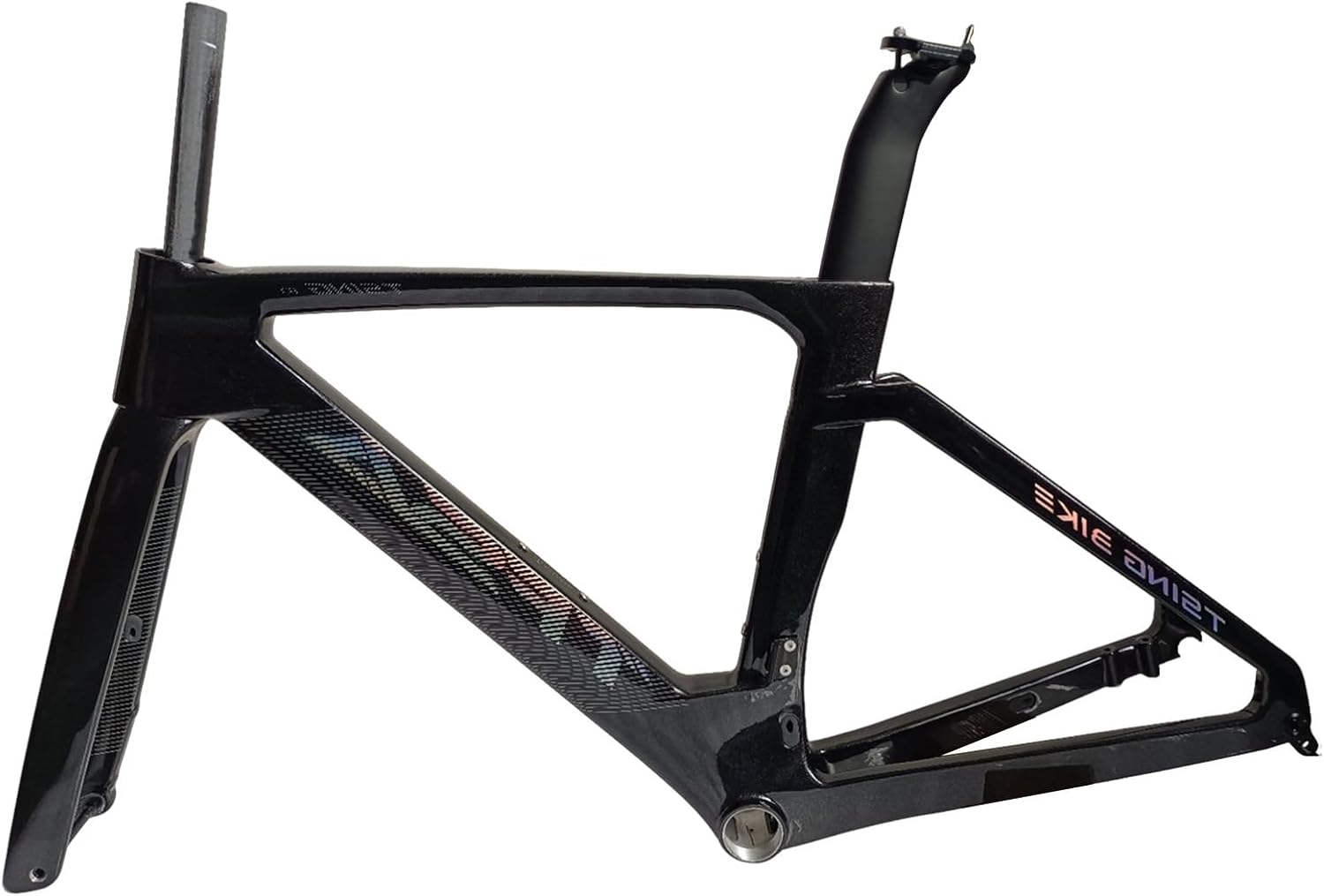

Carbon Fibre Frame 47/49/52/54/56cm Road Bikes Frame Mountain Bike Frame Carbon Fiber Fork Frame Internal Routing 700C Disc Brake(Dark Grey,52cm)

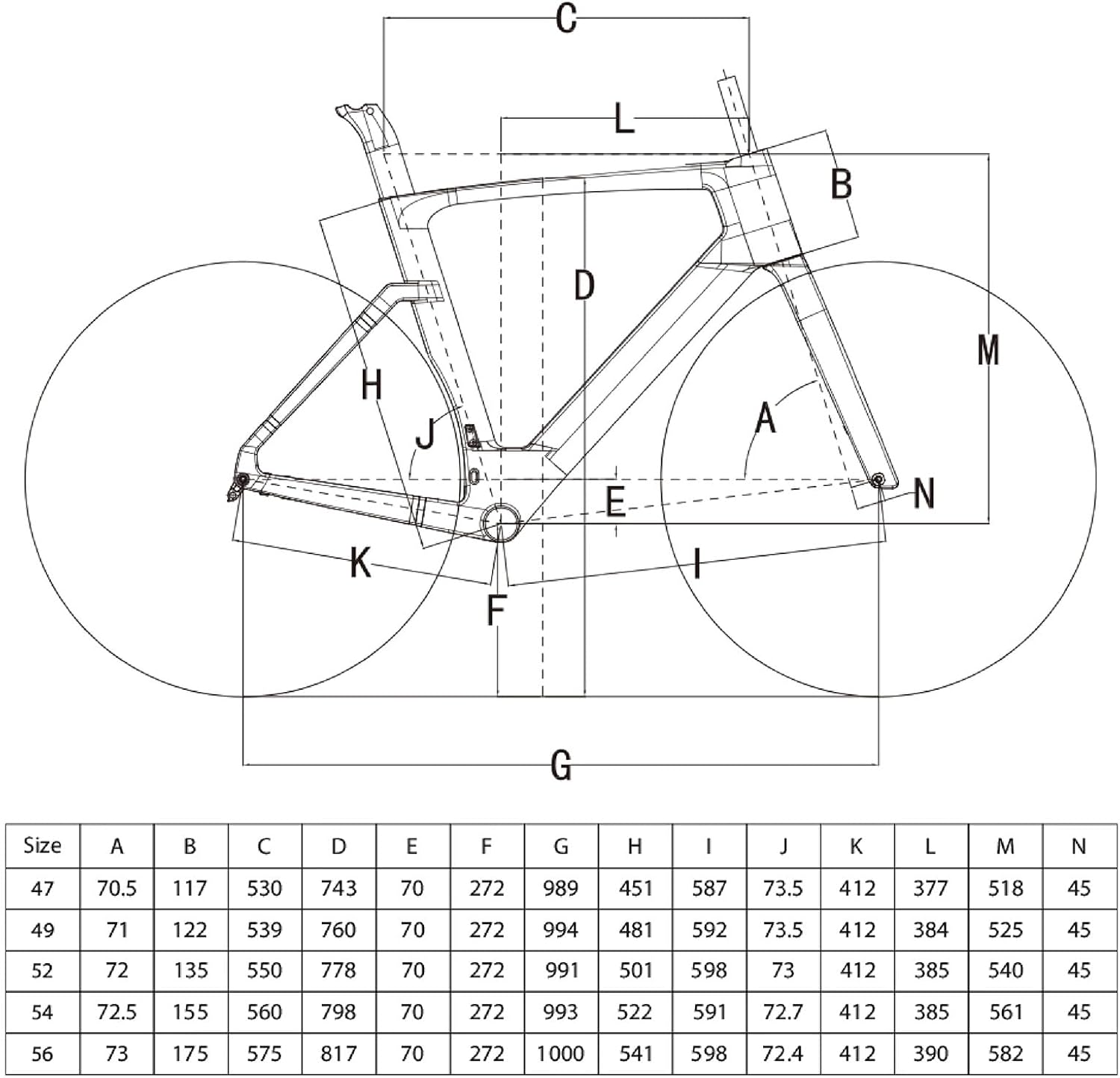

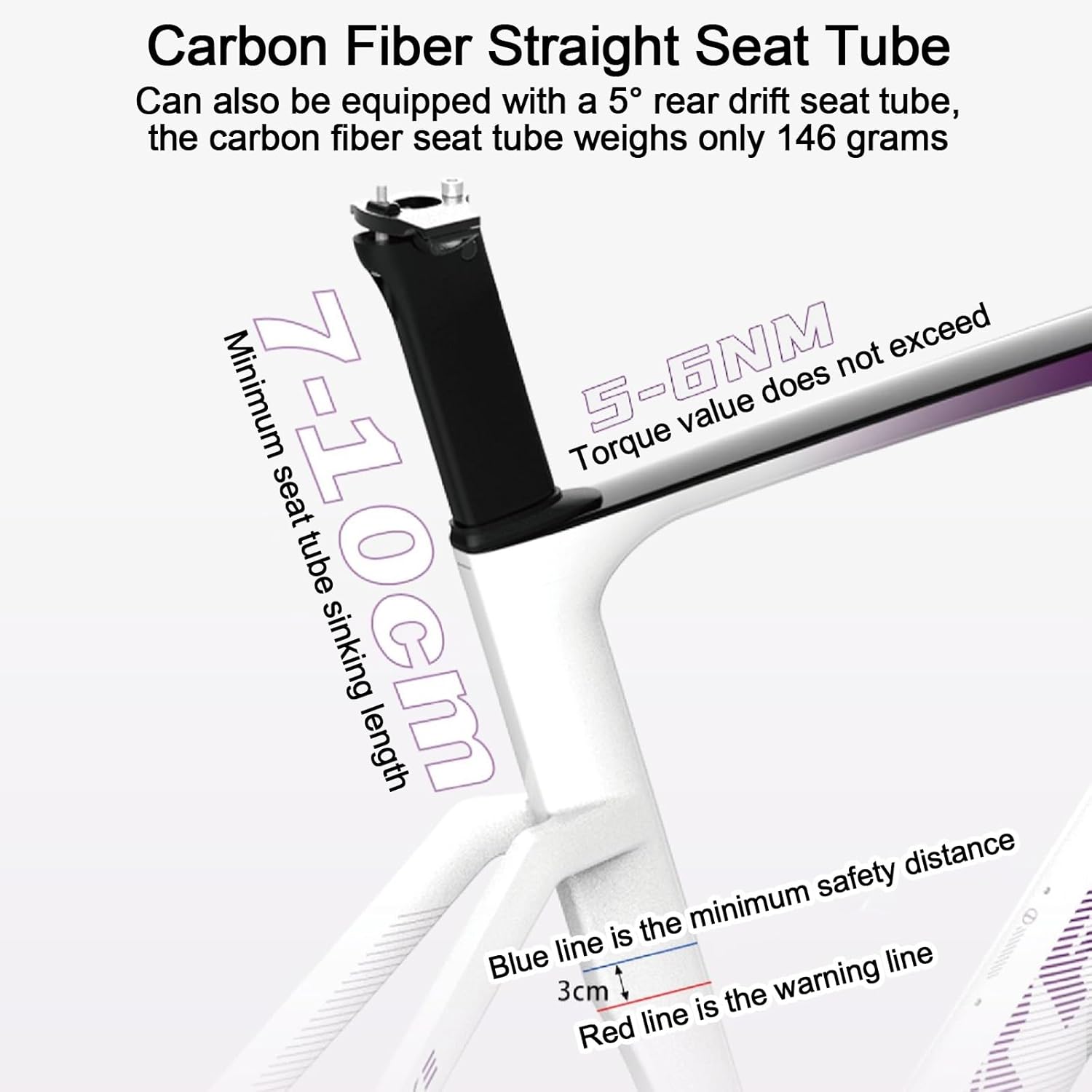

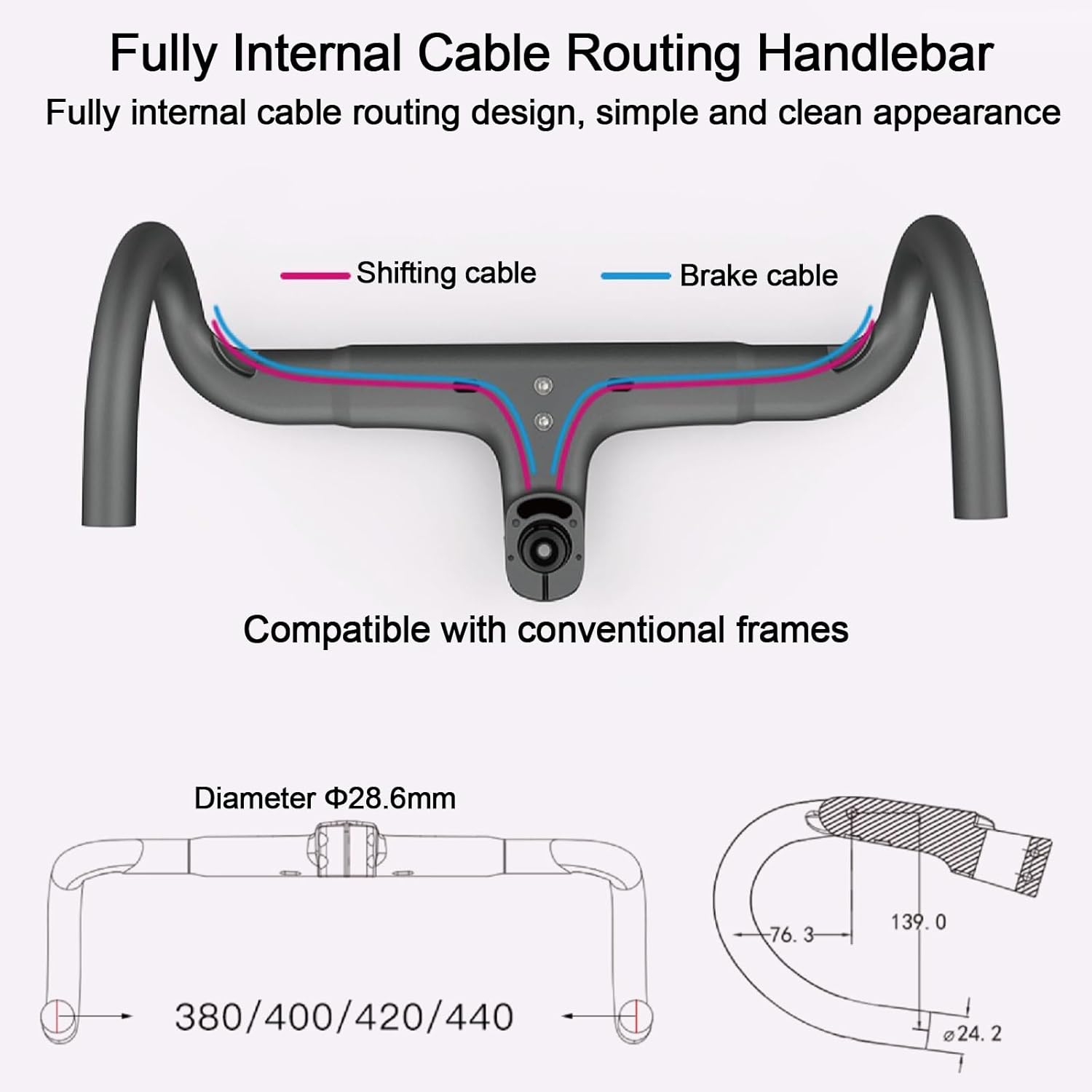

Carbon Road Bike Framest – Lightweight, Stiff & High-PerformanceAerodynamic Design – Optimized tube shapes cut through wind for maximum efficiencyFrame name: Carbon fiber disc brake road frameFrame size: 47/49/52/54/56CMFrame material: T800Frame weight: 950g (52cm) unpainted, maximum difference ±20gHeadset: 1-1/8'1-1/2'upper 52mm lower 52mmBrake: Disc brakeBottom bracket model: T47 threaded middle 46.8mm, L86mmInstallation: Suitable for DI2 and MechanicalApplicable wheels: 700C/28-30Opening: Front 12 *100mm; rear 12*142mmHandlebar size (mm): 380*80/90; 400*80/90; 420*90/100/110; 440*90/100/110Handlebar weight: 370gFront fork weight: 375gFront fork diameter: 28.6mmSeat tube weight: 146gSeat tube length: 360mmProducts include: frame, front fork, seat tube, handlebar, bowl set, suspension center and wire accessoriesNotice:1. Please allow slight dimensional tolerances due to manual measurements, lighting in photography may cause color differences from real life.2. Please double check the size details in our list according to your actual situation to make sure you buy the right Bikes frame.

• Full suspension bike frame: 47/49/52/54/56cm Mountain bike frame, Cross-country class downhill bike frame, Disc brake bike frame.

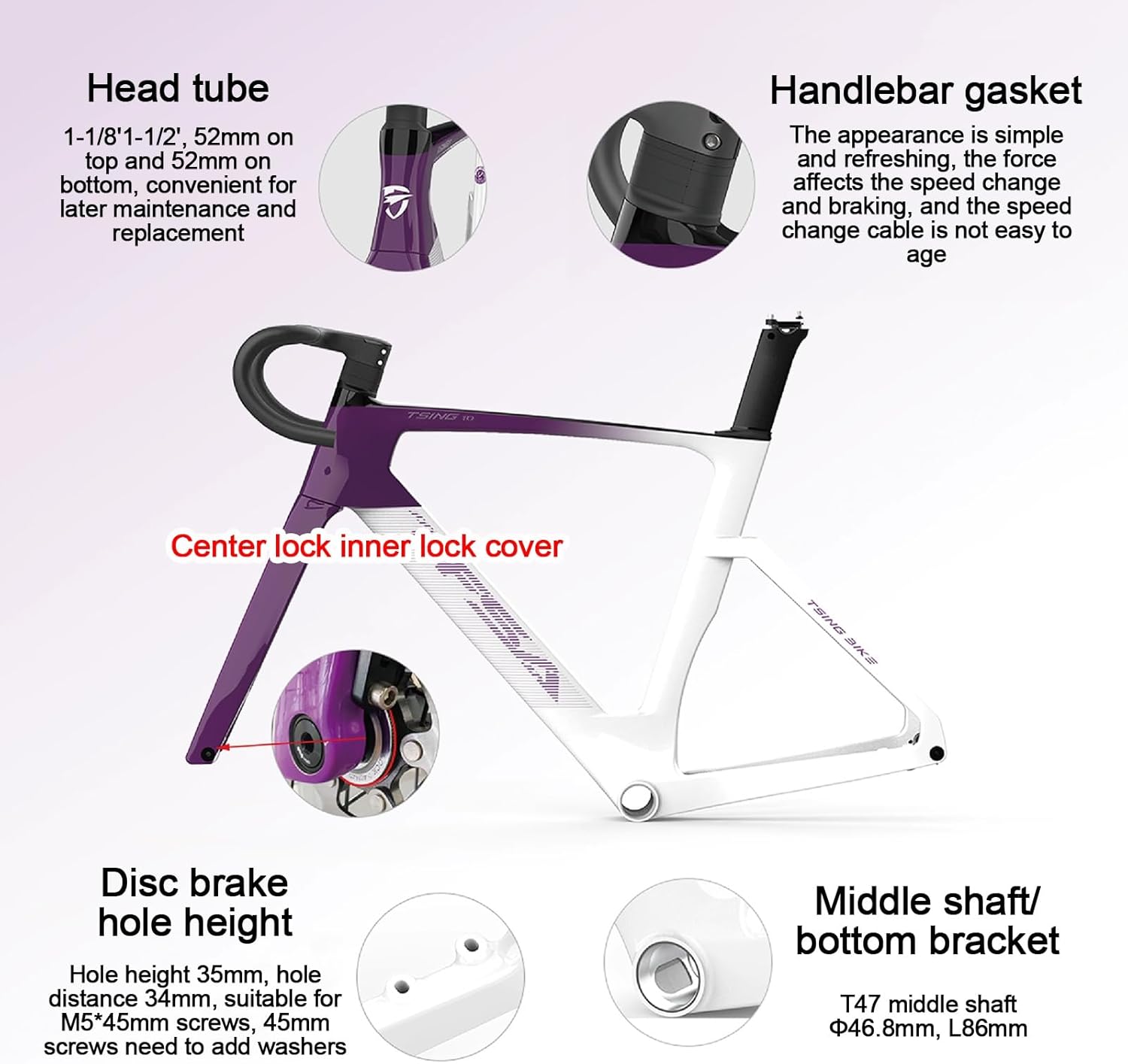

• Full Internal Routing Bike Frame: T47 Threaded Bottom Brackets. The headset is 1-1/8'1-1/2', 52mm on the top and 52mm on the bottom. The brake is a disc brake.
• Carbon Fibre Frame: high strength, good rigidity and impact absorption.
• Process: Shifter brake internal routing, Supports direct mount front pull front derailleur, Elevating seatpost can be installed, Hidden Disc Brake Mount, Glossy lacquer Process.
• Package: Includes frame, front fork, seat tube, handlebar, bowl set, suspension center and wire accessories
