CNC Oil Mist Collector Industrial Oil Fume Purifier CNC Oil Mist Purifier 650-823CFM Industrial Soot Purifier 1PH 1HP Machine Tool, AC220V Three-Phase

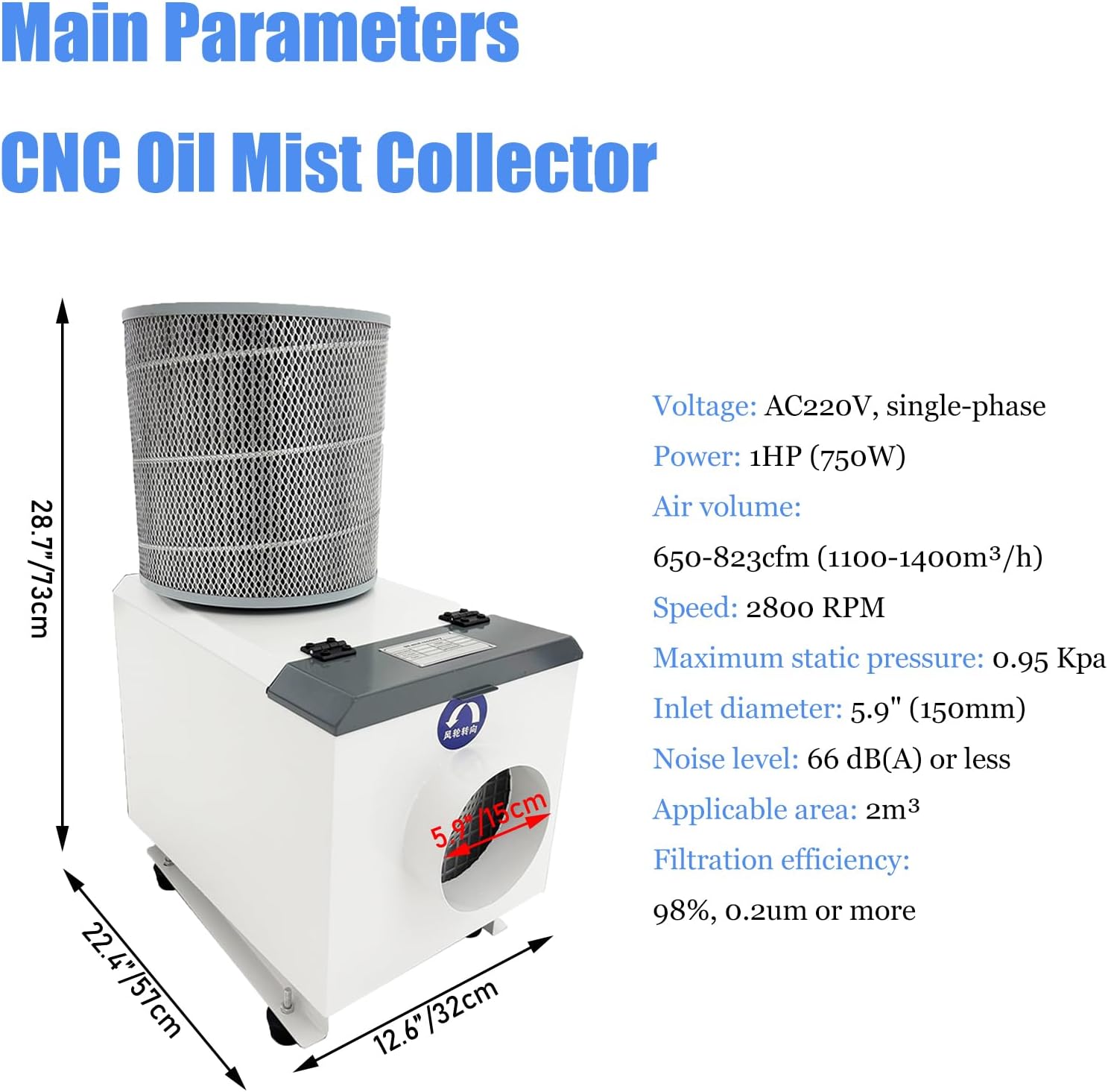

Product Parameters Voltage: AC220V, single-phase Power: 1HP (750W) Air volume: 650-823cfm (1100-1400m³/h) Speed: 2800 RPM Maximum static pressure: 0.95 Kpa Inlet diameter: 5.9" (150mm) Noise level: 66 dB(A) or less Applicable area: 2m³ Filtration efficiency: 98%, 0.2um or more Machine size: 12.6*22.4*28.7" (32×57×73cm) Net weight / Gross weight: 68.3lbs(31kg) / 77.1lbs(35kg) One package includes Oil mist purifier *1 Accessory Kit *1

• Main Parameters: Voltage: AC220V, single-phase, Power: 1HP (750W), Air volume: 650-823cfm (1100-1400m³/h), Speed: 2800 RPM, Maximum static pressure: 0.95 Kpa, Inlet diameter: 5.9" (150mm), Noise level: 66 dB(A) or less, Applicable area: 2m³, Filtration efficiency: 98%, 0.2um or more
• Min. 0.2μm Filtration Accuracy: The industrial oil fume purifier adopts efficient filter element and precision filter material, can handle impurities with a minimum accuracy of 0.2μm, the filtration efficiency can reach 98%
• Multi-layer Filtration Purification: Under the purification of the filter cotton and filter bucket, the quality of CNC working space is greatly improved, more than one layer of the filter layer, even the tiny particles can be blocked, the filtration effect is as high as 98%
• Detachable Filter Layer Design: Filter layer adopts drawer type design, it can be easily removed for cleaning or maintenance, and the main body bottom tilt design will also not affect the filtering effect even if it is used for a long time
• Great CNC Workspace Clean Tool: The oil mist collector is mainly installed in CNC machining centers, grinding machines, lathes and other machine tools to collect and purify impurity such as oil mist, water mist and dust produced by mechanical processing, keep your CNC workspace clean and tidy
