Heavy Duty A/C Compressor for Freightliner Cascadia DD13 DD15 (2008–2024), 10S15C, PV8, 157mm Clutch, 12V, 2-Pin, Gauge Line 61.55mm

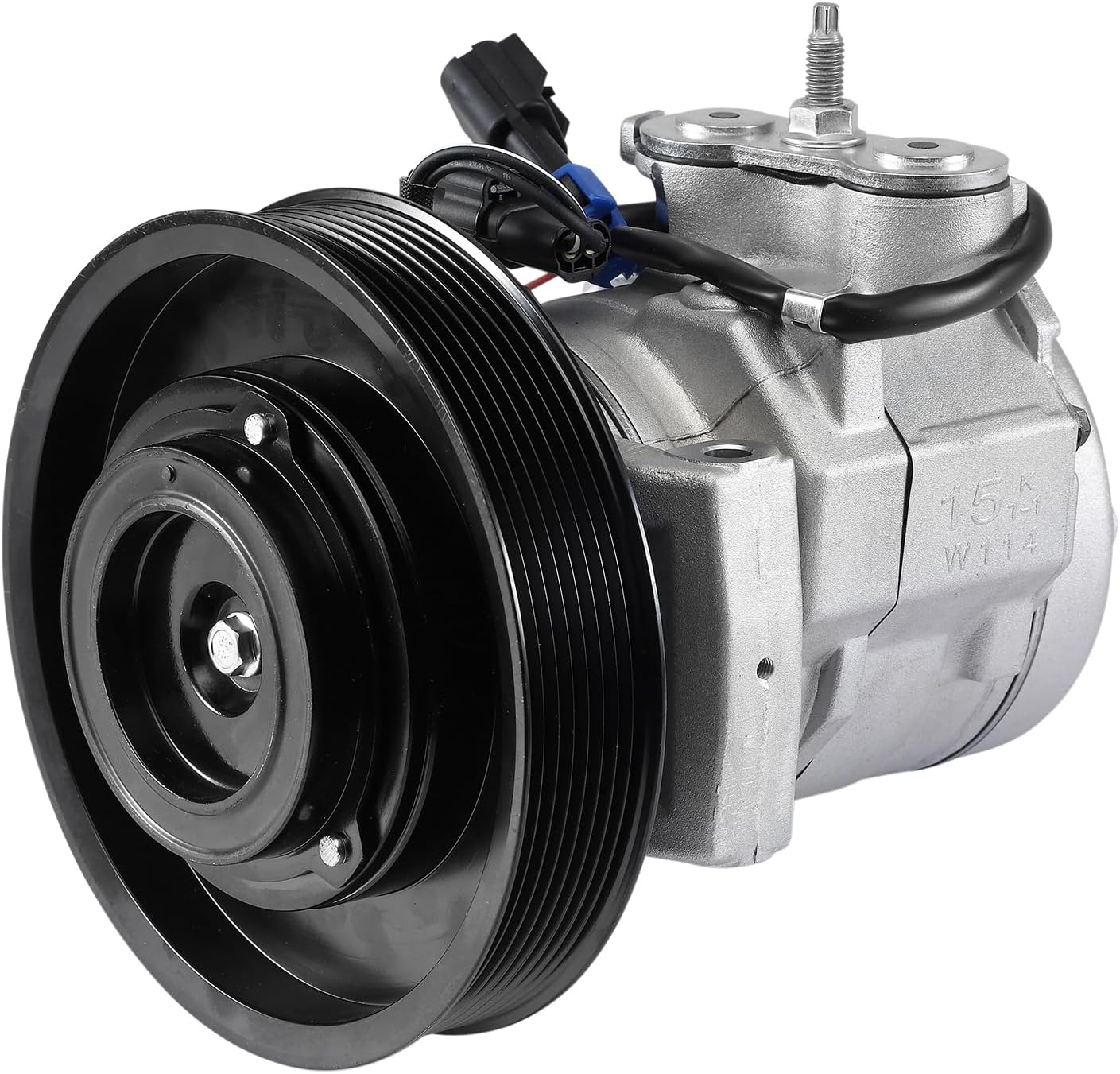

This CASA TRUCK heavy-duty A/C compressor is engineered based on OE geometry for Freightliner Cascadia platforms with DD13 and DD15 engines.The compressor features a 10S15C swash-plate design, PV8 clutch system, 12V 2-pin connector, and a precisely matched 61.55 mm gauge line, ensuring correct belt alignment and compatibility with factory accessory drive systems.Designed as a direct aftermarket replacement for OE and major aftermarket references, including Freightliner, Sunair, and Automann part numbersTechnical SpecificationsBrand: CASA TRUCKProduct Type: Heavy Duty A/C CompressorCompressor Type: 10S15CClutch Type: Poly-VGrooves: PV8 (8-Groove)Clutch Diameter (Nominal): 157 mmPulley Effective Diameter: Ø163 ± 0.3 mmPulley Max Outer Diameter (Tooth Tip): Ø168 ± 0.3 mmVoltage: 12VConnector: 2-PinOil Type: PAG Oil (per vehicle A/C system specification)Gauge Line: 61.55 mmQuantity: 1 Compressor (Sold Individually)·

• 1. Vehicle Application Heavy duty A/C compressor designed for Freightliner Cascadia (2008–2018) and New Cascadia (2018–2024) equipped with DD13 / DD15 engines. OE-geometry replacement. Not a universal compressor.
• 2. OE / Aftermarket Cross Reference Direct aftermarket replacement for the following OEM and aftermarket part numbers: 53-8150, S-23228, Freightliner 22-65771-000, Freightliner 22-65771-001, Sunair CO-1062CA, Automann 830.31302BE, and OE references 5405, 75R9082, 2265771000, 2265771001, 2275520000, ACP650000S / ACP 650 000S, RD5146450P, 22-75520-000.
• 3. Compressor & Clutch Specification 10S15C swash plate compressor with PV8 (8-groove) clutch pulley. Nominal clutch working diameter 157 mm, Pulley effective diameter: Ø163 ± 0.3 mm，Pulley max outer diameter (tooth tip): Ø168 ± 0.3 mm matched to OE belt drive configuration.

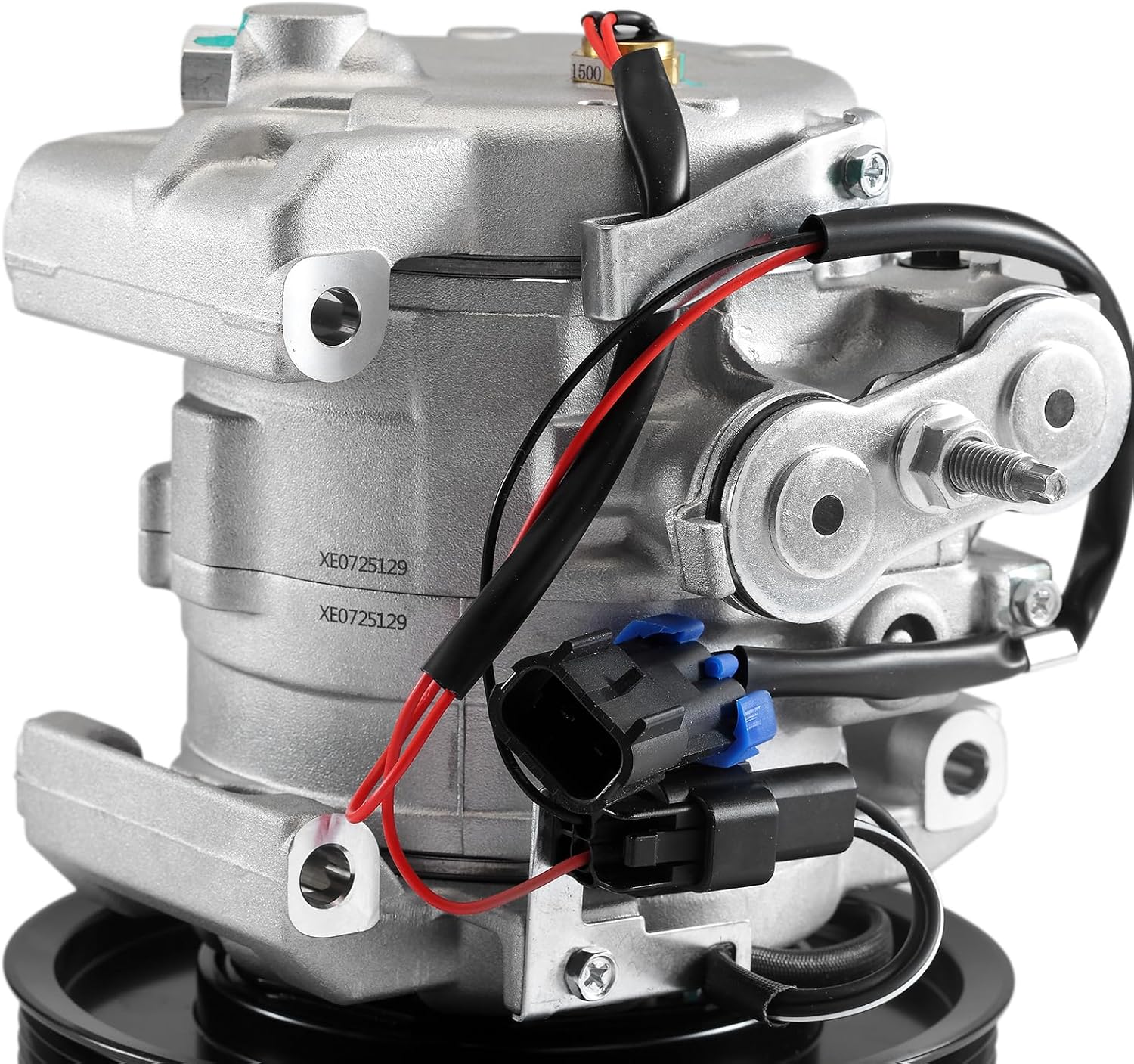

• 4. Electrical & Belt Alignment Accuracy 12V electromagnetic clutch, 2-pin electrical connection. Gauge Line: 61.55 mm (measured from mounting face to pulley centerline) ensures proper belt alignment on DD13/DD15 accessory drive systems.
• 5. Installation Notes OE-style direct-fit installation using factory mounting points and hose connections. Sold individually (1 compressor per package). Confirm part number, gauge line, and connector type prior to installation.
