High Calibrate Peristaltic Pump 110V-240V Liquid Chemicals Metering Pump Variable Speed Compatible Various Tubing Sizes

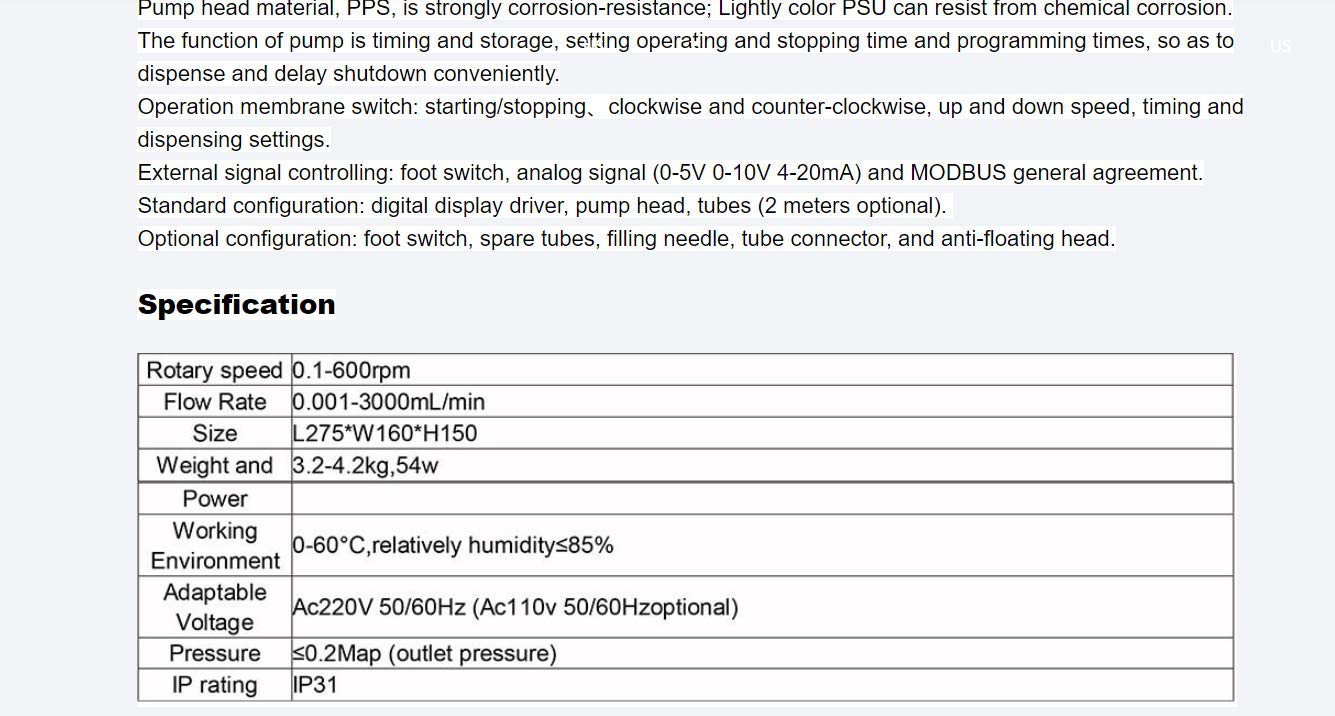

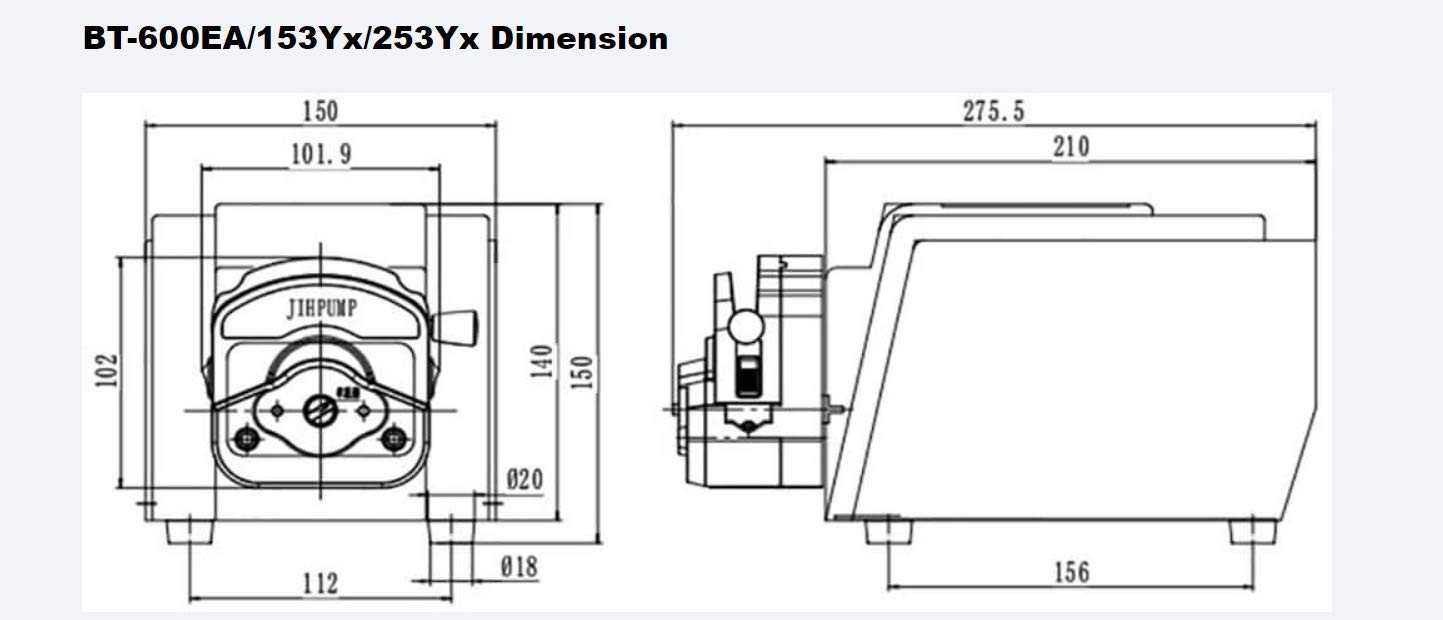

Features:■ Pump head material PSU can resist from chemical corrosion.■ Functions :timing and storage, setting operating and stopping time and programming times, so as to dispense and delay shutdown conveniently.■ Operation membrane switch: starting/stopping、clockwise and counter-clockwise, up and down speed, timing and dispensing settings.■ External signal controlling: foot switch, analog signal (0-5V 0-10V 4-20mA) and MODBUS general agreement.(pls note this listing for pump without foot pedal ,if you want to order this pump with foot pedal ,pls contact with us)Flow Rate(ml/min, medium:clean water) 14# 16# 25# 17# 18#1.6×1.6 3.1×1.6 4.8×1.6 6.4×1.6 7.9×1.60.03-120 0.08-470 0.17-1120 0.3-1780 0.4-2200Note: Above date is measured in the laboratory at room temperature for reference ; Tubing material, size, Viscosity, suction and lifting length will have some impact on flow rate.SpecificationRotary speed: 0.1-600rpmFlow: 0.2-2200mL/minSize: L275*W160*H150Weight and Power:4.2kg, 36wWorking Environment: 0-60°C,relatively humidity≤85%Adaptable Voltage: AC110V-220V AvailablePressure: ≤0.2Map (outlet pressure)Packing: Complet Housing Pump, default 2m silicon tube 17# (6.4*1.6) ,if you want other diameter tubes ,pls leave a note.

• 1-Flow rate: 0.2-2200mL/min Rotary speed: 0.1-600rpm
• 2-Accep tube :ID*WTmm 1.6×1.6 3.1×1.6 4.8×1.6 6.4×1.6 7.9×1.6
• 3-Weight and Power:4.2kg, 36w
• 4-Adaptable Voltage: AC110V-220V Available
• 5-Pressure: ≤0.2Map (outlet perssure)
