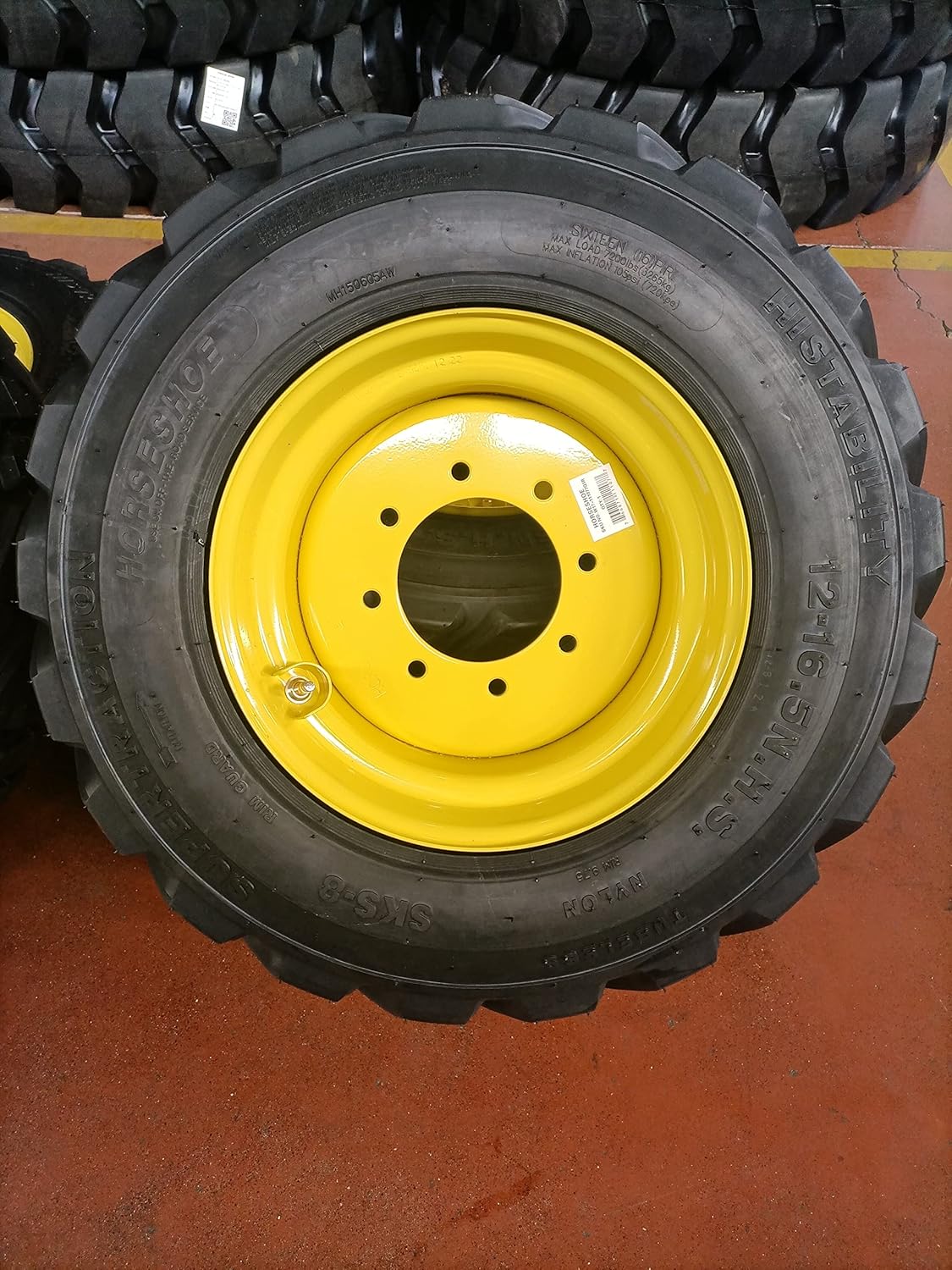

HORSESHOE 12-16.5 16PLY R-4 Extra Thick Rim-Guard Wall Super Heavy Duty LRH Tire mounted on 16.5x9.75 Yellow Steel rim with Brass Valve Stem & Protection Shield - 12X16.5 16.5x9.75 SKS-8 (2)
4.3 (21 items)
Limited Time SaleUntil the end
19
14
32
US$480.56 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$320.37
Product details
| Management number | 215306427 | Release Date | 2026/04/12 | List Price | US$320.37 | Model Number | 215306427 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 12-16.5 12x16.5 Skid Steer Tire Mounted to 16.5x9.75 - 8x8 Bolt Rim Yellow for New Holland replacement on Left Side and Right Side both available (Please Note: This 2-Pack Listing Item Includ 1 set Left Side Tires/Wheels Plus 1 set Right Side Tires/Wheels) ;
- [FEATURES] 16 Ply Rating Super Heavy Duty H Load (LRH Max Load 6880 Pounds @90 psi Cold), Off-The Road & Not For Highway Service, Compatible fits many skid steer machines including New Holland models 785, LX865, LX885, LX985, LS180, LS185, LS190, L180, L185 & L190, etc.,; Bobcat models 825, 843, 853, 863, 873, S175, S185, S205, S220, S250, S300, S550, S570, S590, S630 & S6500, etc.,; Case models 435, 445, 450, 465, 75XT, 85XT, 90XT, etc., and will also fit many other machines (please inquire if interested).
- [TIRE SIZE] 31.87" oval diameter, 11.91" section width, 29/32" tread depth (23/32nds deep in center - 35/32nds deep towards the outside); [RIM SIZE] 16.5" diameter, 9.75" rim standard width, Wheel is an 8 lug X 8" bolt pattern and takes a 12-16.5 tire size, Rim Bolt holes are 3" apart center to center and 8" across center to center; Wheel Disk center pilot hole (Bore) is 6", Front Offset: 4" - Center mounting dish sets in about 4 inches from front edge (valve stem side) of wheel; Tire with Rim-Guade- extra thicker wall and Wheel/Rim with Brass Valve Stem & Stem Protector.
- [FITMENT] This 8-lug rim design with a 6" center bore (hole) and 8" lug pattern takes a tire size 12-16.5 fits most skid steers such as New Holland, Bobcat, Case, Mustang, John Deere, Daewoo, Gehl, Kubota, CAT, Scat Trak & Thomas made most of their machines with an 8-lug rim, The main difference is the offset does vary between the different manufacturers but most of the rims do interchange (If you're not sure if these will fit your machine, please message us your machine model and we'll try to let you know).
- [PATTERN] R-4 T168 Improved traction performance pattern designed with low bar angle for less slippage than conventional tread directional and self-clean out designs resulting in reduced soil disturbance and rutting, which is capable of durability promotes a secure load durability and a high load capacity standard off-road applications. This classic tread pattern suitable for the most popular use and not recommended for heavy-duty commercial applications or continuous hard surface wear.

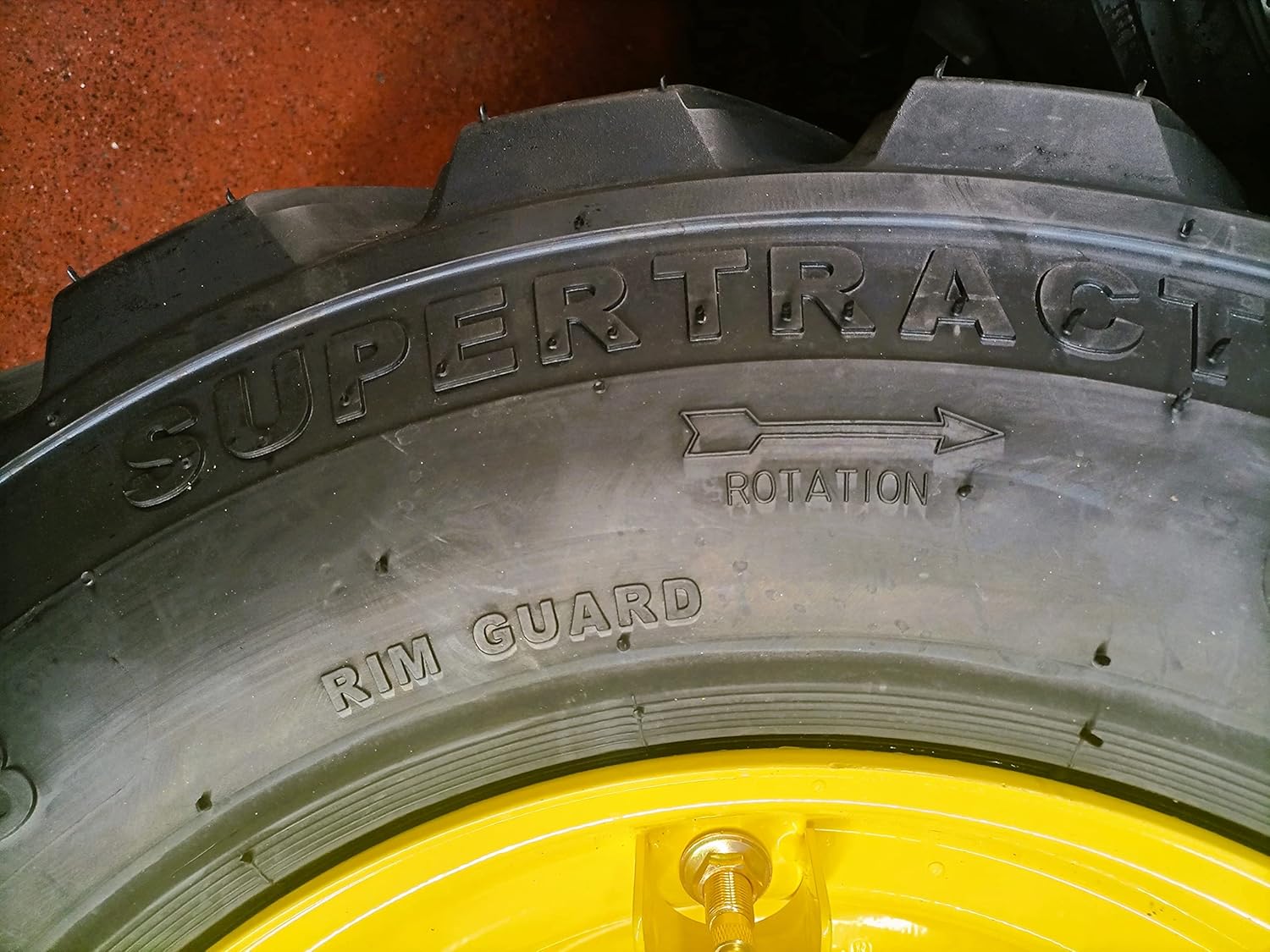

- [CONSTRUCTURE] Skid Steer 12-16.5 tire features a 16PR sidewall construction, which is a great enabler to reinforce structure maintains the tire's optimal shape under the load and driving pressure affecting it.
- [ATTENTION] Before place an order, please confirm all dimensions: 12-16.5 / 12x16.5 tire size, 6" center pilot hole (Bore), 8 lug x 8" bolt-pattern, 4" front offset, etc. fits your skid steer machines' current wheel replacement to avoid wrong purchase, Any questions please contact us before ordering.
- [SHIPPING INSTRUCTION] 1) We ship 1 tire on wheel/rim assembly into 1 strong carton package avoid wheel be damaged on transit procession; 2) If more than 2 tires on wheels/rims ordered, we will ship the order by multiple packages; 3) Carrier may deliver multiple packages separately due to trailer transit schedule may vary so if only partial packages delivered, please keep patience and give extra time for rest of order showing up; 4) Webstore system can only show 1 tracking number, please contact us for rest of tracking numbers of multiple packages.
- RETURN POLICY: Please note, we DO NOT offer free returns. If you choose to return the tires for a reason besides us sending the wrong tires, you will pay shipping both ways, plus a restocking fee. Please make sure you have the right size before ordering!
| UPC | 766871109012 |
|---|---|
| Size | 12-16.5 Tire/Rim New Holland Yellow Left/Right |
| Color | Yellow (ND) |
| Rim Size | 16.5 Inches |
| Rim Width | 9.75 Inches |
| Brand Name | HORSESHOE |
| Load Index | 149.00 |
| Wheel Size | 32 Inches |
| Item Weight | 110 Pounds |
| Manufacturer | HORSESHOE TYRE GROUP |
| Item Diameter | 16.5 Inches |
| Material Type | Alloy Steel, Nylon, Rubber |
| Item Type Name | Skid Steer Tires/Wheel Mounted on Steel OEM Rim Yellow |
| Exterior Finish | Alloy Steel Paint |
| Wheel Backspacing | 6.5 Inches |
| Included Components | 16.5x9.75 / 8x8 Bolt Heavy Duty Alloy Steel Yellow Rim Mounted |
| Pitch Circle Diameter | 8 Inches |
| Manufacturer Part Number | HSW-S601-16597588650400P-YELLOW(ND) |
| Compatible with Vehicle Type | Backhoe, Construction Loader, Farm Tractor, Industrial Equipment, Skid Steer |
| Manufacturer Warranty Description | 1 Year Manufacturer Warranty |
