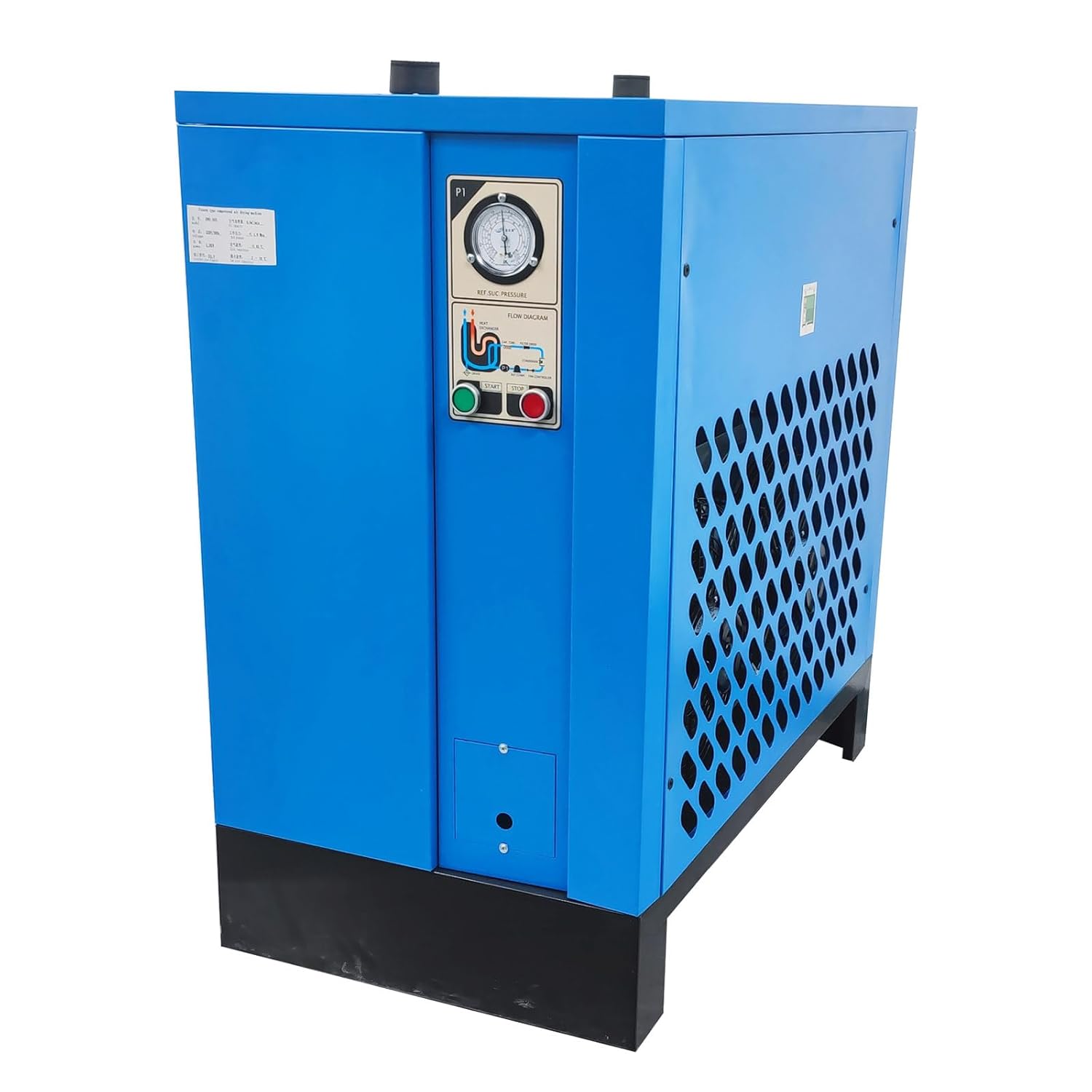

INTSUPERMAI 50C Refrigerating Dryer Air Compressor Refrigerated Freeze Dryer Air Compressor Drying and Dewatering Equipment Refrigeration Dryer 220V 6.5m³/min Air Capacity

Product parameter: Refrigerant Type：R410A Voltage：220V Power：1000W Interface pipe diameter: ZG1.5 Air capacity: 6.5m³/min Work pressure: ≤1.0Mpa Inlet temperature: ≤45℃ Dew point temperature: 2-10℃ Features： 1.Environmental friendly. This machine adopt R410A environmental protection refrigerants, the destruction to the atmosphere is zero and meet the needs of the international market. 2.Easy To Install. Easy installation with the compact design is ready to use with a small footprint,matches the compressor's displacement, saving energyeasy maintenance and improved reliability. Note: 1. Please turn on the cold dryer for about 5 minutes before using the gas. 2. It is recommended that the side of the power cable connected to the machine should be against the wall, with the front side at least 1 meter away from the wall and the back side at least 20 cm away from the wall. 3. The drain time can be adjusted. If it needs to be adjusted longer, the SEC key on the left can be adjusted to 2 seconds, and the MIN key on the right can be adjusted to 5 minutes (0-10 middle). 4. Be sure to wrap raw material tape or use liquid sealant when installing. Item Number: 1* 50C Refrigerating Dryer Air Compressor Refrigerated Freeze Dryer (033237)

• [Working Principle] The humid and high temperature compressed air flows into the front cooler after the heat exchange into the heat exchanger and the cold air discharged from the evaporator, so that the temperature of the compressed air into the evaporator is reduced.
• [Parameter] Refrigerant Type：R410A, Voltage：220V, Power：1000W, Interface pipe diameter: ZG1.5, Air capacity: 6.5m³/min, Work pressure: ≤1.0Mpa, Inlet temperature: ≤45℃, Dew point temperature: 2-10℃
• [Adjustable] The drain time can be adjusted. If it needs to be adjusted longer, the SEC key on the left can be adjusted to 2 seconds, and the MIN key on the right can be adjusted to 5 minutes (0-10 middle).
• [Easy To Install] Easy installation with the compact design is ready to use with a small footprint,matches the compressor's displacement, saving energyeasy maintenance and improved reliability.
• [Note] Precision machine, as far as possible installed indoors, if outdoors, need to do rain, high temperature and other special protection. No rain, no corrosive gas
