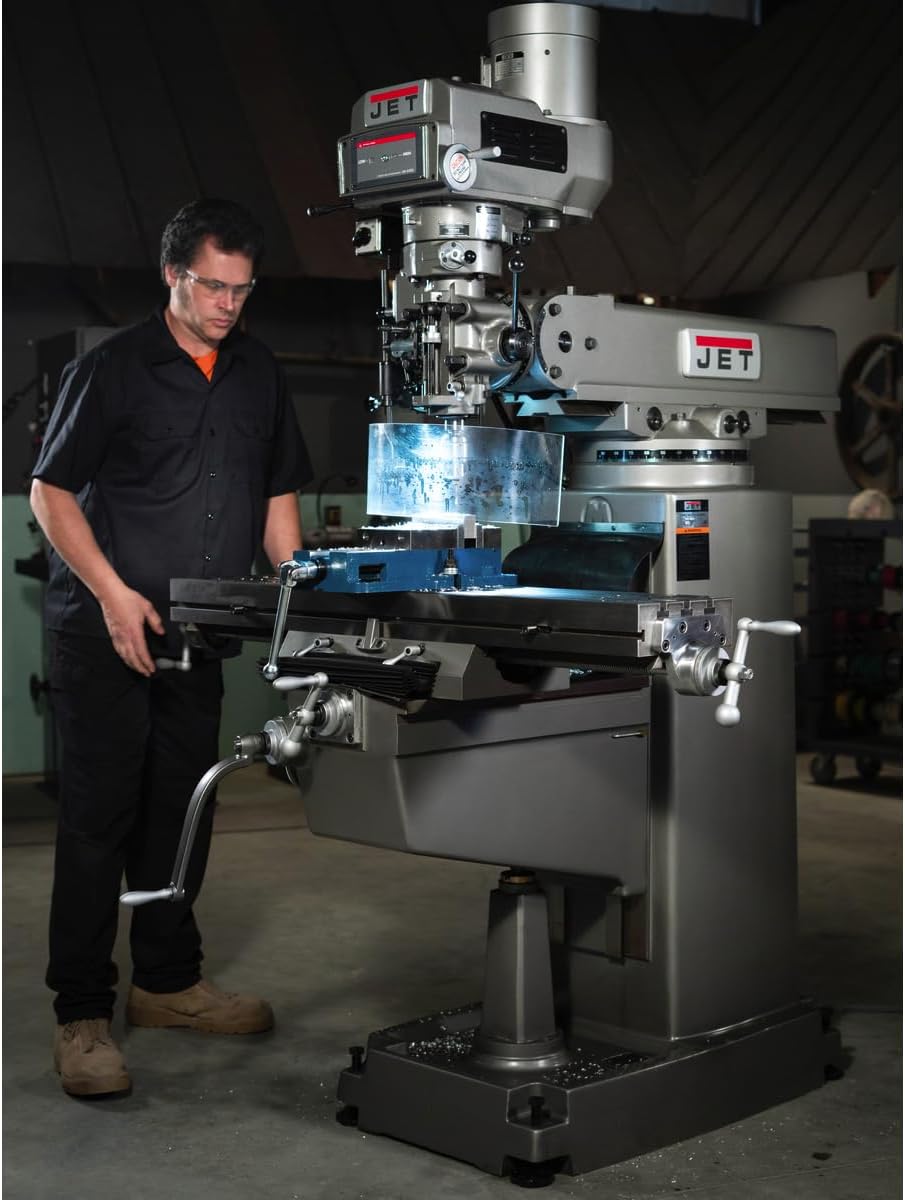

JET Variable-Speed Vertical Mill, X-Axis Powerfeed, ACU-RITE 203 DRO, 230/460V 3Ph (JTM-1050VS2)
5.0 (134 items)
Limited Time SaleUS$13,179.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 229829096 | Release Date | 2026/05/31 | List Price | US$8,786.40 | Model Number | 229829096 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Description The JET JTM-1050VS2 features Certified Meehanite castings, a heavy-duty hardened and ground 10" x 50" table, and high-precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable-Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two-Year Warranty. From the Manufacturer This model is the JTM-1050 milling machine with the addition of an Acu-Rite 200M DRO and powerfeed(X-axis). This variable speed milling machine has a precision bored and honed machine head. The large diameter quill is chrome finished. The spindle head is internally cooled, has high precision class 7 spindle bearings, and includes a heavy duty spindle brake. Included is a no fuse breaker power connection. The motor drive is splined with a one-piece quill pinion and shaft, with bearing support at the end. The three-stage power downfeed with an automatic stop make this machine easy to work with. Included are precision hardened and ground ways and table. There are chrome lead screws and Turcite B on the X and Y axis. There are adjustable gibs throughout, and an internal coolant tank is built into the base for use with a coolant system (coolant pump not included). There are locks on all movable surfaces and all the dials are satin chrome finished. Standard equipment includes; one-shot lubrication system, way covers, a draw bar, and a tool box with tools. Tolerance test sheet included.
- Adjustable gibs throughout
- Chrome lead screws on X and Y axis
- Chrome-plated motor shaft with bearing support at end
- Hardened and ground square vertical knee ways and cross ways
- Internal coolant tank built into base for use with coolant system (coolant pump not included)
- One-shot lubrication system
- Spindle head is internally cooled
| UPC | 662755137136 |
|---|---|
| ASIN | B0007M6GRM |
| Color | Gray |
| Voltage | 230 Volts |
| Base Type | Fixed |
| Brand Name | Jet |
| Horsepower | 3 |
| Unit Count | 1.0 Count |
| Item Weight | 2780 Pounds |
| Manufacturer | WMH Tool Group |
| Model Number | 690117 |
| Power Source | AC |
| Material Type | Alloy Steel, Cast Iron |
| Item Type Name | Variable-Speed Turret Mill |
| Battery Description | Corded electric |
| Included Components | Turret Mill, Flat Way Cover, Pleated Way Cover, Draw Bar, Table Adjustment Handles, Tool Box (w/tools, touch up paint, oil bottle) |
| Manufacturer Part Number | 690117 |
| Maximum Rotational Speed | 3800 RPM |
| Manufacturer Warranty Description | 2 Year |
| Global Trade Identification Number | 00662755137136 |
