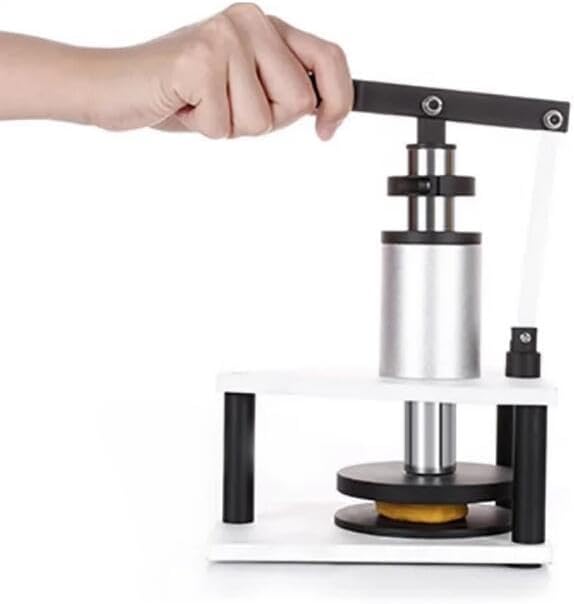

Lever-Type Metallographic Sample Flattener Microscope Specimen Pressing Tool PCB Slice Analysis Equipment WYP-2

Lever-Type Metallographic Sample Flattener Microscope Specimen Pressing Tool PCB Slice Analysis Equipment WYP-2Specification: Product Name: Lever-Type Flattener Material: Carbon Steel Upper Platen Size: 89mm Lower Platen Size: 89mm Pressing Accuracy: ≤0.5mm Net Weight: 3kg Dimensions (W×D×H): 120mm × 153mm × 310mm Feature: High-precision pressing (≤0.5mm deviation) Robust carbon steel construction for durability Ergonomic lever mechanism for effortless operation Versatile applications: metallography, PCB analysis, stamp collection Applications: Flattening specimens for metallographic microscopy. Preparing PCB slices for cross-sectional analysis. Flattening stamps, documents, or delicate materials. Usage Instructions: 1.Inspect Stability: Ensure the reference platen is securely fastened before use. Tighten if loosened during transport. 2.Secure Sample: Fix the specimen using modeling clay or a universal clamp. If using clay, place the sample on a machined metal plate (smooth side down). 3.Press Sample: Press the lever handle to lower the platen and flatten the specimen until parallel to the platen surface. 4.Remove Sample: Release the lever to retract the platen. Gently remove the sample to avoid displacement. Transfer to testing instruments for analysis. Maintenance & Care: Clean Regularly: Wipe the body with a dry cloth to maintain cleanliness. Lubricate Sliding Shaft: Apply instrument oil to the sliding shaft every 6 months for smooth operation. Avoid Impact: Do not strike the platen or sliding shaft to preserve precision. No Unauthorized Disassembly: Tampering may damage components or reduce accuracy. Package included: 1× Lever-Type Flattener

• The WYP-2 Lever-Type Flattener is a precision tool designed for laboratory use, ideal for flattening uneven specimens to ensure accurate microscopic analysis.
• Constructed from durable carbon steel, this press guarantees stability and longevity.
• It is widely used in metallographic sample preparation, PCB slice analysis, and even by stamp collectors for flattening delicate items like stamps.
• With a pressing accuracy of ≤0.5mm, it ensures specimens remain parallel to the reference platen for reliable testing results.
