LS 42BLF01 Brushless DC motor,4000RPM,24VDC,3phase & driver BLDC-8015A 24～50VDC
5.0 (81 items)
Limited Time SaleUS$57.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221092867 | Release Date | 2026/05/03 | List Price | US$38.00 | Model Number | 221092867 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
42BLF01 Brushless DC Motor： Number of Poles： 8 Number of Phases：3 Rated Voltage（V）: 24 Rated Speed(RPM): 4000 Rated Torque(N-m):0.063 Rated Current(A): 1.9 Output Power(W): 26 Peak Torque(N-m): 0.18 Peak Current(A): 5.7 Torqueconstant(N-m/A):0.035 Rotor Inertia(g.cm2):24 Body Length(mm): 47 Mass(kg):0.29 BLDC-8015A: Features ● SPWM，Speed/Current alike close loop technology, smooth rotation l Smooth torque output within speed range (8000 rpm Max.) l 1：75 Max. speed regulation ratio l 60°/300°/120°/240°Electrical angle adjustable l Speed regulation： potentiometer adjust / Analog input l Run/Step、Quick Brake、CW/CCW rotation shift l Speed output、Alarm output（O.C.） l Over current、over voltage、stall、missing speed Alarm

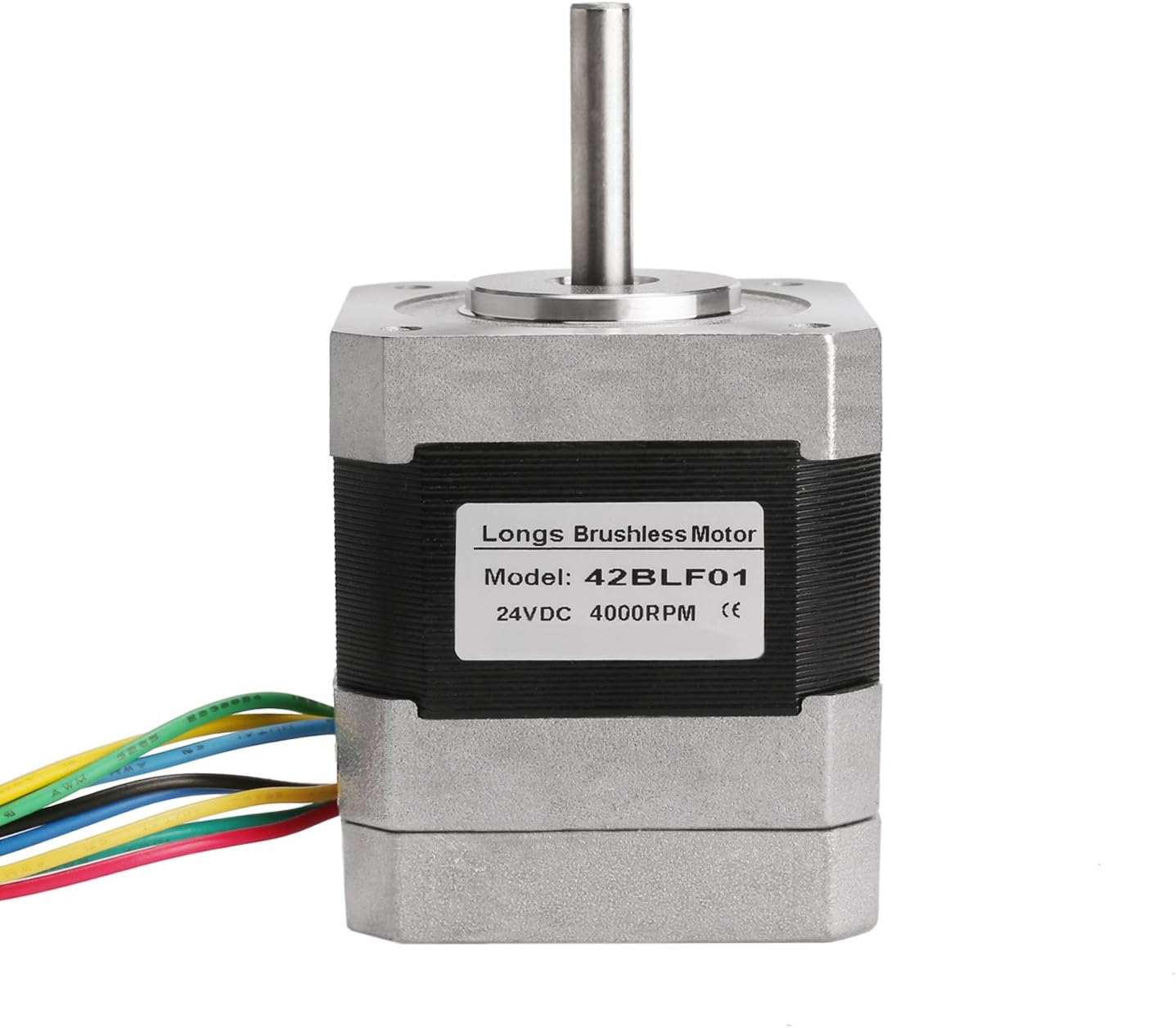

- 42BLF01 Brushless DC Motor
- Nema17 26W 24V 1.9A 4000RPM Lenght:47mm
- BLDC MOTOR
- BLDC DRIVER---BLDC-8015A 24-50vdc SPWM ,rated 15A,Peak 45A
- 1pc*42BLF01 1pc*BLDC*8015A
| Speed | 4000 RPM |
|---|---|
| Voltage | 24 Volts |
| Brand Name | Longs Motor |
| Horsepower | 26 Watts |
| Manufacturer | longs motor |
| Material Type | Copper |
