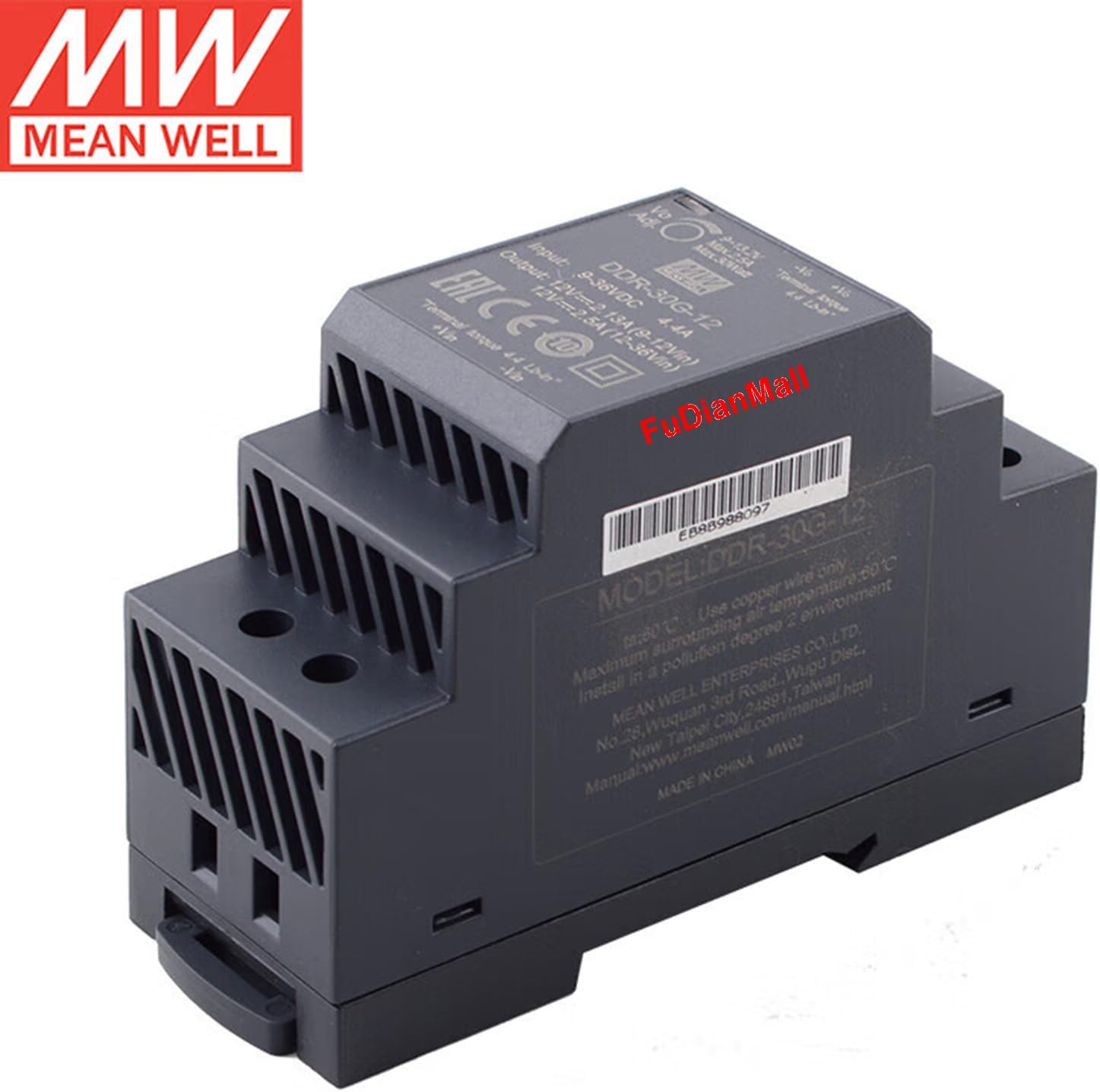

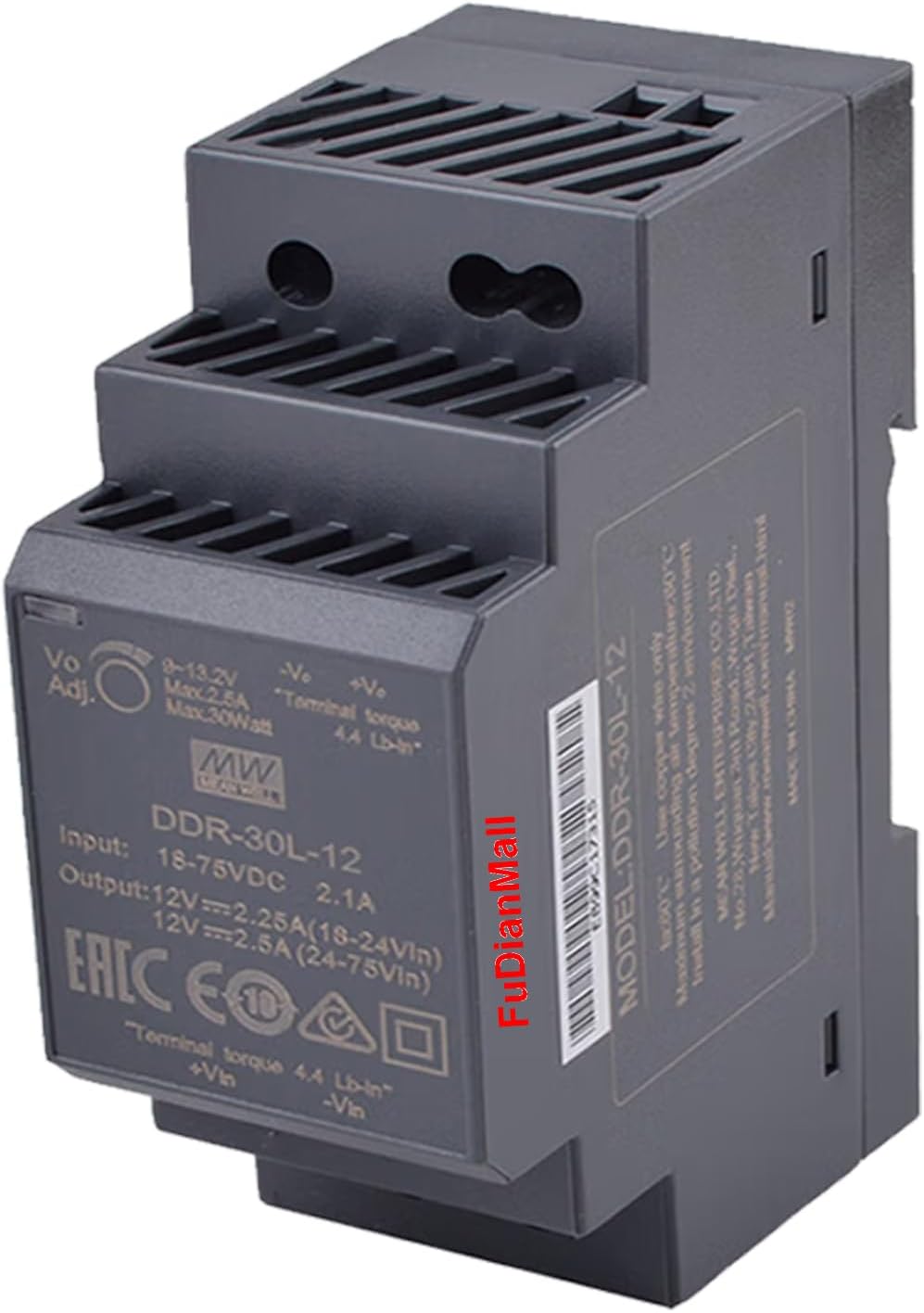

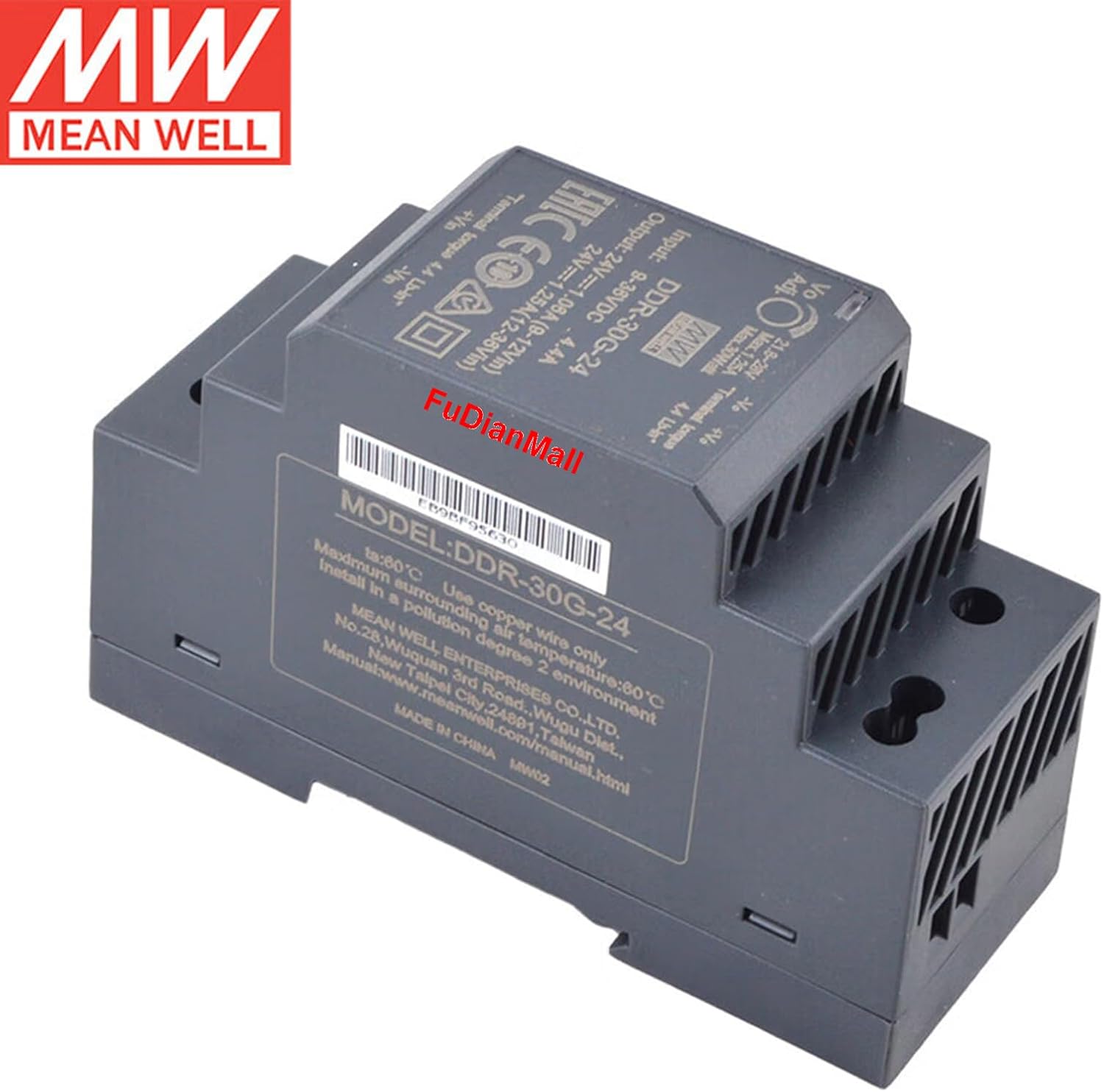

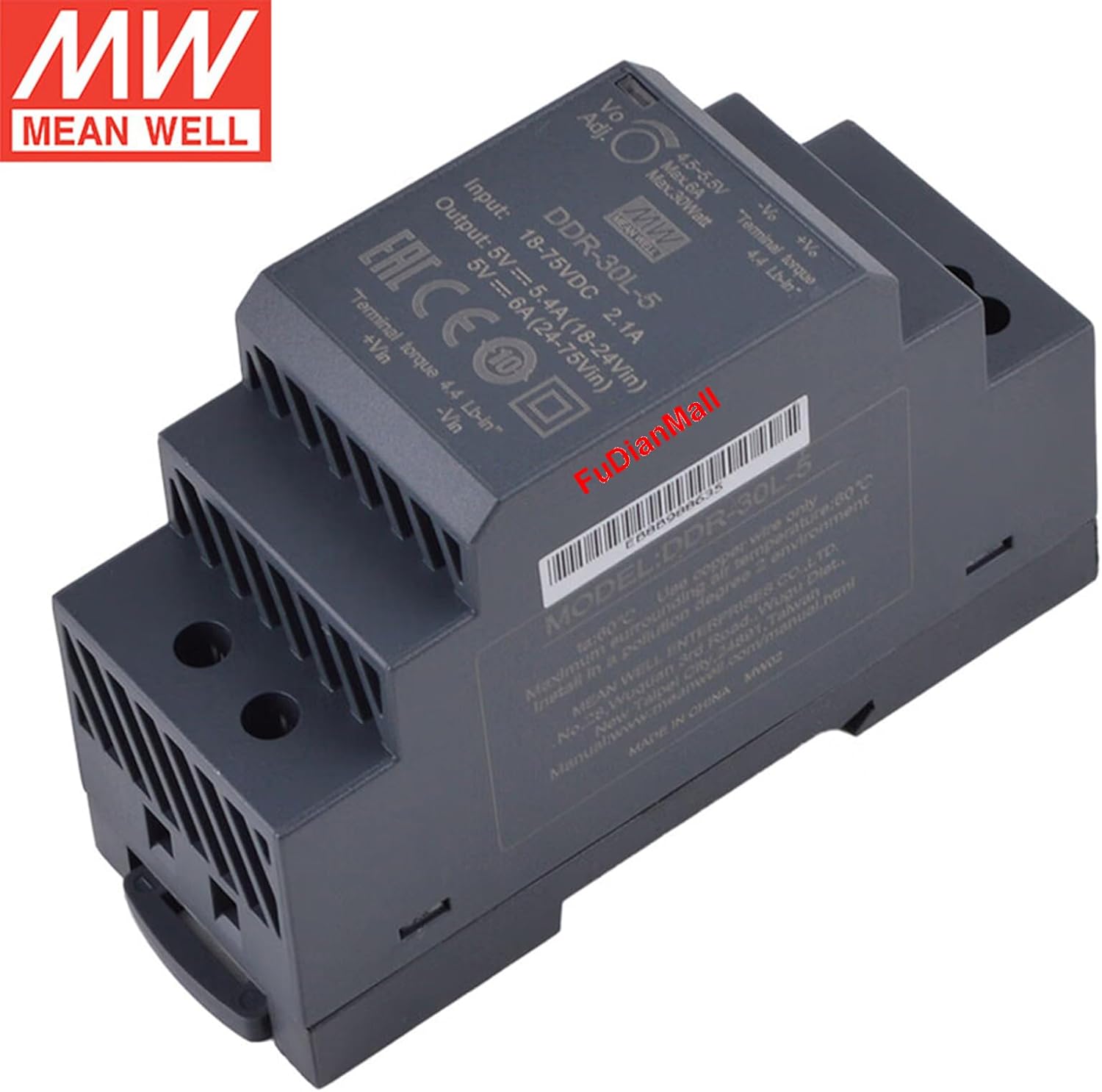

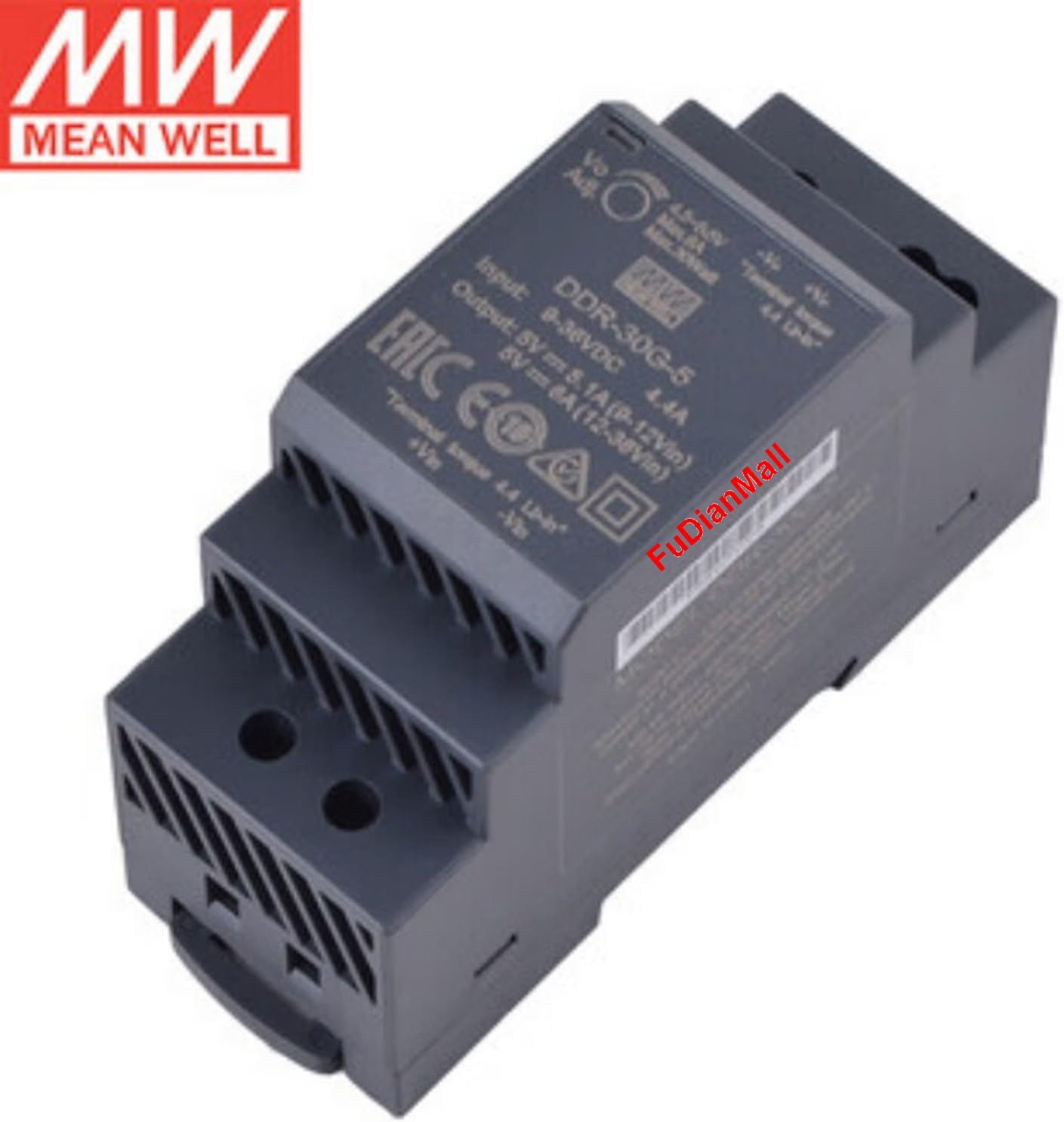

Mean Well DDR-30G-5 30W DIN Rail Type DC-DC Converter Semi Modular Power Supply PC Laboratory DC Power Supply 5V 6A
5.0 (77 items)
Limited Time SaleUS$29.69 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221188886 | Release Date | 2026/05/03 | List Price | US$19.79 | Model Number | 221188886 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
NEW, MEAN WELL Power Supply.DDR-30 series is a 30W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (35mm), 4:1 ultra wide input voltage, -40~+85℃ wide operating temperature, 4KVdc I/O isolation, adjustable output voltage ( 10%) and full protective functions...etc.This series has two input options: 9~36V /18~75V and various output options: 5V / 12V / 15V / 24V and can be used for industrial control, security control, communication system and other fields. Suitable applications are DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable...etc.
- Ultra Slim Design: Width only 35mm (2SU) for space-saving installation in compact environments
- Wide Input Voltage Range: 4:1 ultra wide input range accommodates various power source configurations
- Extended Temperature Operation: -40+85 wide working temperature range ensures reliable performance in harsh industrial conditions
- Adjustable Output Voltage: DC output adjustable within 10% range for flexible voltage requirements
- Natural Cooling System: Cooling by free air convection eliminates the need for additional fans or forced air systems
- High Isolation Protection: Features 4KVdc input to output isolation for enhanced safety and system protection
- DIN Rail Mounting: Easy installation with standard DIN rail type mounting system for industrial applications
- Multiple Output Options: Available in various output voltages including 5V, 12V, 15V, and 24V to meet different application requirements
- Comprehensive Protection Functions: Equipped with full protective functions to safeguard against overcurrent, overvoltage, and short circuit conditions
| Brand | FuDianMall |
|---|---|
| Wattage | 30 watts |
| Model Name | MEAN WELL Power Supply |
| Form Factor | DIN Rail |
| Item Weight | 0.26 Pounds |
| Manufacturer | Mean Well |
| Model Number | DDR-30G-5 5V/6A/30W/DIN Rail Power |
| Cooling Method | Natural Convection |
| Output Wattage | 30 Watts |
| Item Dimensions | 2.15 x 1.38 x 3.54 inches |
| Mfr Part Number | DDR-30G-5 5V/6A/30W/DIN Rail Power |
| Warranty Description | 2 years warranty |
