Mini ATS Automatic/Manual Transfer Switch 2P 125A AC220V, 2POLE 125amps ATS Dual Power Transfer Switch for Home Generator, Din Rail Mounted 220V Manual Transfer Switches Fast Transfer
4.3 (42 items)
Limited Time SaleUS$25.38 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221086351 | Release Date | 2026/05/03 | List Price | US$16.92 | Model Number | 221086351 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

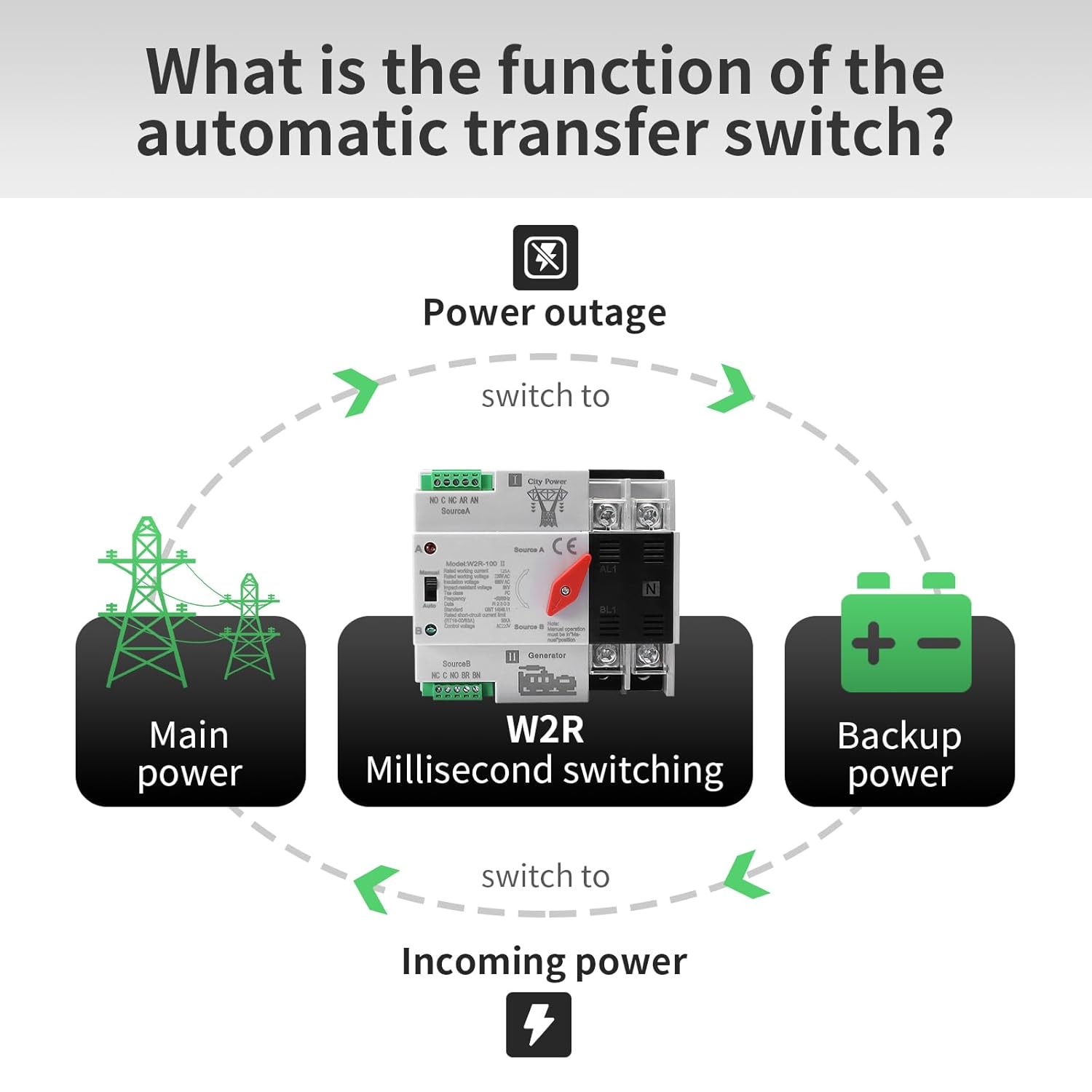

- Functions and Features: 125a 2p automatic transfer switch for home generator W2R is a PC-level infrequent switching switch, mainly used for automatic or manual conversion of two power supplies, and can test whether the common power supply or backup power supply is normal. When the common power supply A is abnormal, the backup power supply B is quickly switched and put into use within 0.05 seconds to ensure the continuity, reliability and safety of power supply. When the common power supply returns to normal, it automatically switches from the backup power supply to the common power supply. Both power supply A and power supply B can be connected to the mains/generator/photovoltaic
- Automatic Mode: ac 220v automatic transfer switch use the automatic mode, the left switch must be in the Auto, and the red handle on the right should point to Source A. When the normal power source A is working normally, A (red light) is always on; when the normal power source A is abnormal, A (green light) goes out and switches to the automatic power source B within 0.05 seconds, and B (green light) is on. When the normal power source A returns to normal, it will automatically switch from the backup power source B to the normal power source A.
- Manual Mode: interruptor de transferencia automática use manual mode to make sure the left switch is in Manual. If you choose power source A, operate the red switch handle on the right to point to Sonrce A, and LED indicator A (red light) will be on. If you choose power source B, manually operate the red switch handle on the right to point the switch to Source B, and LED indicator B (red light) will be on.
- 220V Over-Voltage and Under-Voltage Protection: automatic transfer switch 125a 220v designed for home track installation, dedicated to PZ30 distribution box. This series of automatic transfer switches is suitable for 50/60Hz dual power grid. The working current is 125A. 220V/50Hz Undervoltage value: 175V, Recovery value: 195V; Overvoltage value: 260V, Recovery value: 240V (± 5V). Please select the product with the corresponding specifications according to the actual working voltage you need
- Wide Application: This 2P dual power ATS ensures a stable power supply, it is used in situations where power outages cannot be sustained,which is very suitable for high-demand equipment; used in hospitals, low-temperature cold storage, data centers and emergency systems, it can automatically and quickly switch to the backup power supply during the power outage of the main power supply to ensure safe and reliable power supply. Suitable for indoor and outdoor generators
- Quality assurance and worry-free after-sales: Made of high-quality PA6, it has high strength, high temperature resistance, excellent insulation performance, and a flame retardant rating of 94V-2; it is lightweight but sturdy. we provides a 30-day no-reason return and a 3-year warranty for this product to ensure that you have a worry-free shopping experience. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to contact us.
| Model | ATS W2R 2P 125A AC220V |
|---|---|
| Brand Name | IGEYAPA |
| Part Number | ATS W2R 2P 125A AC220V |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Control Type | automatic/manual |
| Manufacturer | IGEYAPA |
| Material Type | Acrylonitrile Butadiene Styrene, Copper |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 125 Amps |
| Operation Mode | Automatic, Manual |
| Item Dimensions | 4 x 3.1 x 4.2 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 220 Volts (AC) |
| Specification Met | CCC, CE |
| Compatible Devices | Generators, Photovoltaic Systems |
| Included Components | 1PCS*ATS W2R 2P 125A AC220V+4PCS* Accessory cable+1PCS*Instruction manual |
| International Protection Rating | IP50 |
