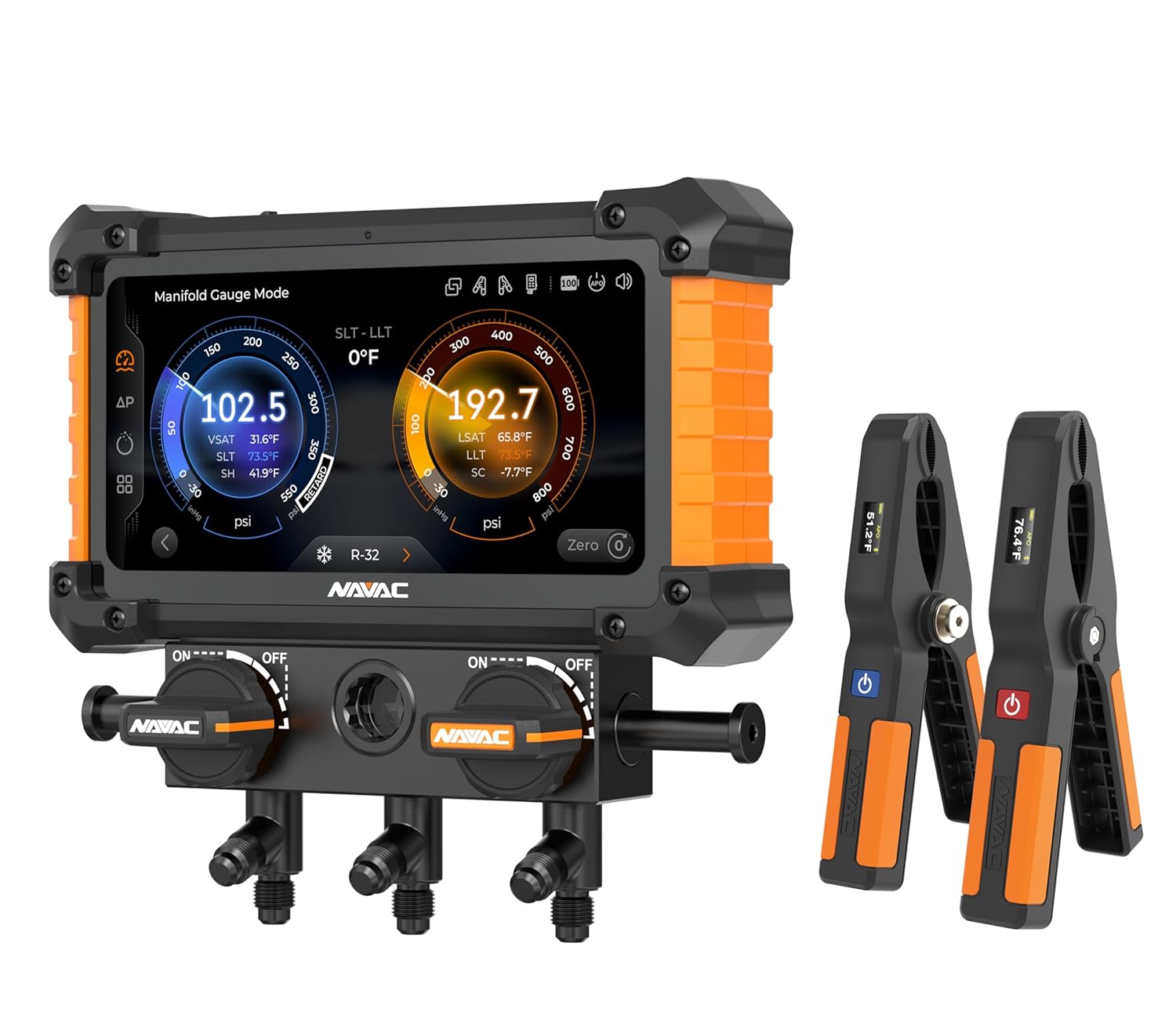

NAVAC Nexus 2 Digital Manifold NX1G | Bluetooth HVAC Gauge w/HD Touchscreen | 100 Refrigerants | Class 0.4 | Impact-Resistant | A2L Compatible | Temp Clamps & Case Included | 2yr Warranty (NX1GV)

The NAVAC NEXUS 2 NX1G is the next-generation digital manifold gauge engineered for HVAC/R professionals who demand precision, speed, and reliability on every service call. Built on the proven NEXUS platform, the NX1G brings a major upgrade with a vivid 5.5-inch HD color IPS touchscreen, an aviation-inspired interface, and full A2L refrigerant compatibility — making it the most capable 2-valve digital manifold gauge in NAVAC's lineup. Plug in your hoses once and handle everything from a single device. The NX1G supports three core operation modes — Manifold Gauge Mode with superheat/subcooling display, Leak Test Mode, and Evacuation Mode with decay test — giving technicians a complete diagnostic and commissioning tool in one compact unit. Class 0.4 accuracy and a maximum manifold pressure of 1087 psi deliver the precision professionals trust for refrigerant charging, leak verification, and system evacuation. Connectivity sets the NEXUS 2 apart. Bluetooth range of 260 ft (line of sight) enables seamless wireless pairing with the included NST1 and NST2 temperature clamps, and is compatible with the NAVAC NMV1S micron vacuum gauge (sold separately in NX1G; included in NX1GV). Full integration with both the myNAVAC App and MeasureQuick App means data logging, remote monitoring, and refrigerant library updates are always at your fingertips. Over 100 refrigerants are supported — including R22, R410A, R32, R454B, R1234yf, and more — with firmware updatable via the myNAVAC App to stay current as the industry evolves. Built for the job site, the NX1G features an aluminum body, shock-absorbing corner protection, rubber housing, and an IP54 rating for dust and splash resistance. Quarter-turn ball valves and 360-degree swivel hose ports make connections faster and navigation of tight spaces easier. A rechargeable 3000mAh lithium battery with Type-C charging delivers 8 to 100 hours of run time depending on usage, with four display themes including a Daylight Mode for clear visibility in direct sunlight. Everything ships in a multi-purpose carry case with folding hook and extension canvas hook for portability. Backed by NAVAC's 2-year warranty.

• 5.5 IN HD COLOR TOUCHSCREEN - 3 OPERATION MODES: Highly responsive IPS touchscreen with aviation-inspired UI across four themes including Daylight Mode for direct sunlight. Covers Manifold Gauge Mode with superheat/subcooling display, Leak Test Mode, and Evacuation Mode with decay test - all touchscreen-navigated for faster diagnostics
• BLUETOOTH HVAC GAUGE - 260 FT RANGE, WIRELESS TEMP CLAMPS INCLUDED: Pairs wirelessly with included NST1 and NST2 Bluetooth temperature clamps up to 260 ft. Compatible with NAVAC NMV1S micron vacuum gauge (sold separately). Integrates with myNAVAC App and MeasureQuick App for remote monitoring, data logging, and field reporting
• 100+ REFRIGERANTS - A2L COMPATIBLE, APP-UPDATABLE: Supports R22, R410A, R32, R454B, R1234yf, R290, R600a, and 90+ more. A2L compatible for current and future refrigerant transitions. Refrigerant library and firmware updatable via myNAVAC App - no equipment replacement needed as standards evolve
• CLASS 0.4 ACCURACY - IP54 RATED, IMPACT-RESISTANT ALUMINUM BODY: Class 0.4 digital precision at up to 1087 psi. Aluminum body with shock-absorbing corners, rubber housing, and IP54 dust and splash resistance. Quarter-turn ball valves and 360-degree swivel hose ports for fast connections in tight spaces
• COMPLETE KIT - 3000mAh TYPE-C BATTERY, 8100 HR RUN TIME: Includes NX1G gauge, NST1 and NST2 Bluetooth temp clamps, Type-C charging cable, and carry case with folding hook. Rechargeable 3000mAh lithium battery, 8 to 100 hr run time. Three 1/4 in SAE ports. Backed by 2-year manufacturer warranty
