Optical Fiber Fusion Splicer, 5in Fusion Splicer Welding Machine 6 Motor Fiber Splicer Fiber Fusion Splicer for Single Mode/Jumper(US 100-240V)

Item Type: Fiber Optic Fusion SplicerMaterial: ABSBattery: 1 x 5200mAh lithium battery (battery included)Alignment Method: Wire core alignmentApplicable Fiber Types: SM (ITU T G.652, G.657), MM (ITU T G.651), DS (ITU T G.653), NZDS (ITU T G.655) single core fiber optic cableFiber Type: 0.25-3.0mm insulated cableFiber Diameter: Cladding Diameter: 80-150μm, Coating Diameter: 100-1000μmCutting Length: Approx. 8-16mm / 0.3-0.6inSplice Mode: Maximum 128 groupsApplicable Heat Shrinkable Length:20mm / 0.8in30mm / 1.2in40mm / 1.6in50mm / 2in60mm / 2.4inHeating Mode: Up to 32 groupsAverage Splice Loss: 0.01dB

• Efficient Work: 6 motor fiber fusion splicer, 6s fast welding, 16s heating time, continuous heating at 215℃, automatic heating of the box cover. Applicable Fiber Types: SM (ITU T G.652, G.657), MM (ITU T G.651), DS (ITU T G.653), NZDS (ITU T G.655) single core fiber optic cable
• Lithium Battery: The fiber fusion splicer using a large capacity 5200mAh lithium battery, a full charge can be used for 300 welding and heating cycles, and the welding loss is small.
• LCD Display: The fusion splicer adopt 5in high definition LCD display, provide users with large and clear optical fiber core display images, splice loss, core alignment, at a glance.

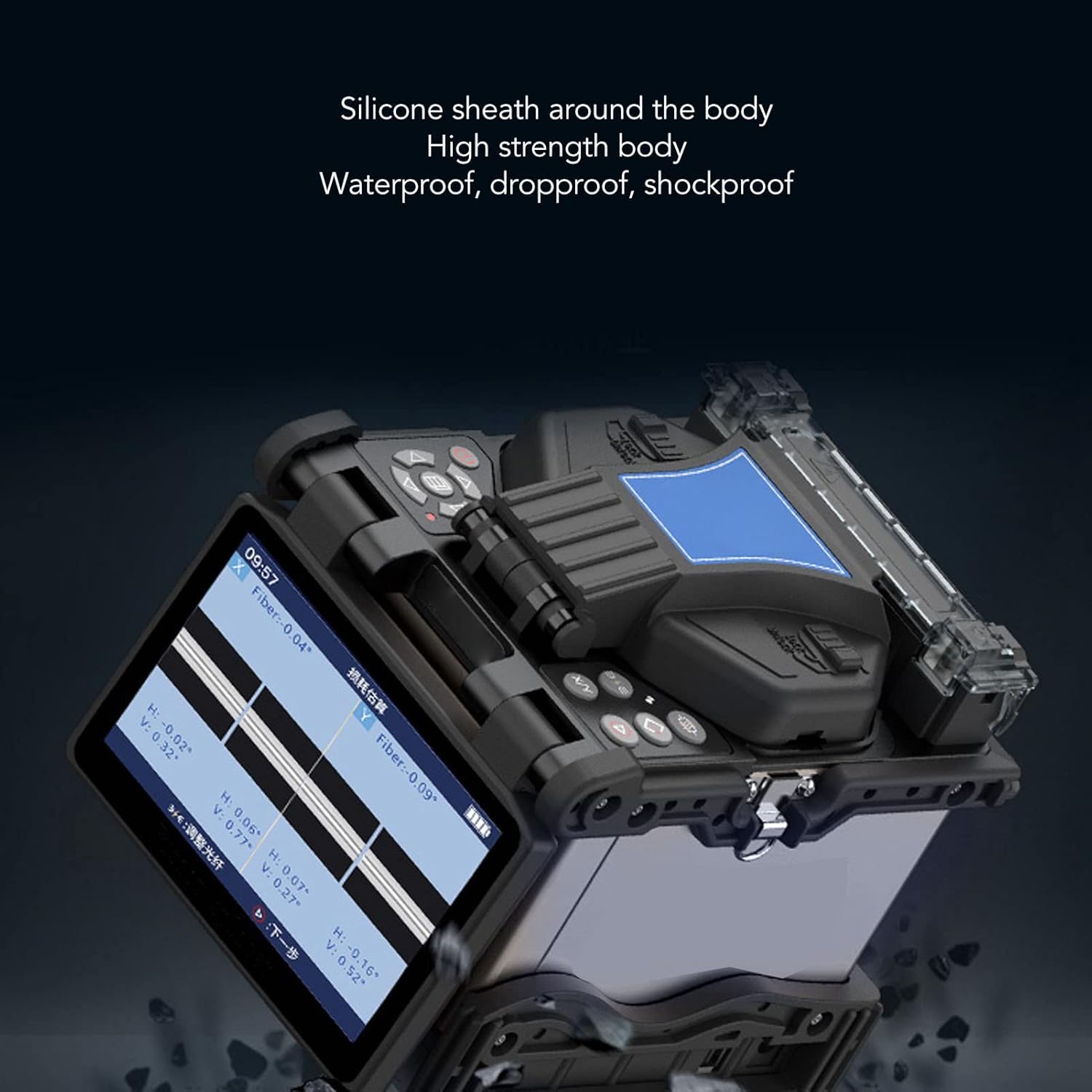

• Sturdy Body: The welding machine silicone sheath surrounds the high strength body, shock and drop resistant, can withstand harsh weather conditions and special work situations.

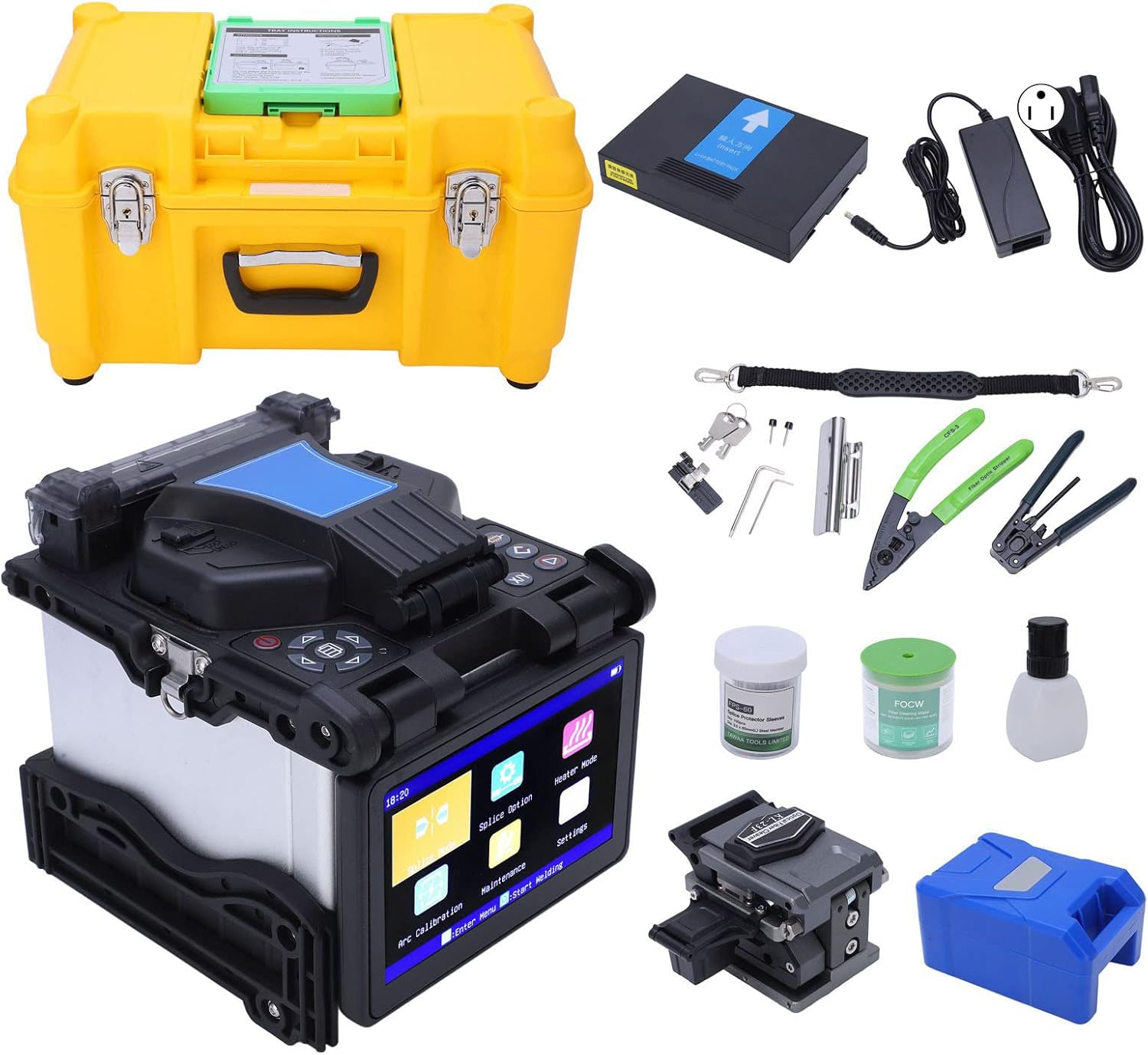

• Carrying Case: The fiber splicer equipped with multifunctional operation desktop carrying case, which has good pressure resistance and can effectively protect the equipment.
