Precision Twist C29M40CO Cobalt Steel Short Length Drill Bit Set with Metal Case, Bronze Oxide Finish, 135 Degree Split Point, Inch, 29 Piece, 1/16" to 1/2" x 64ths

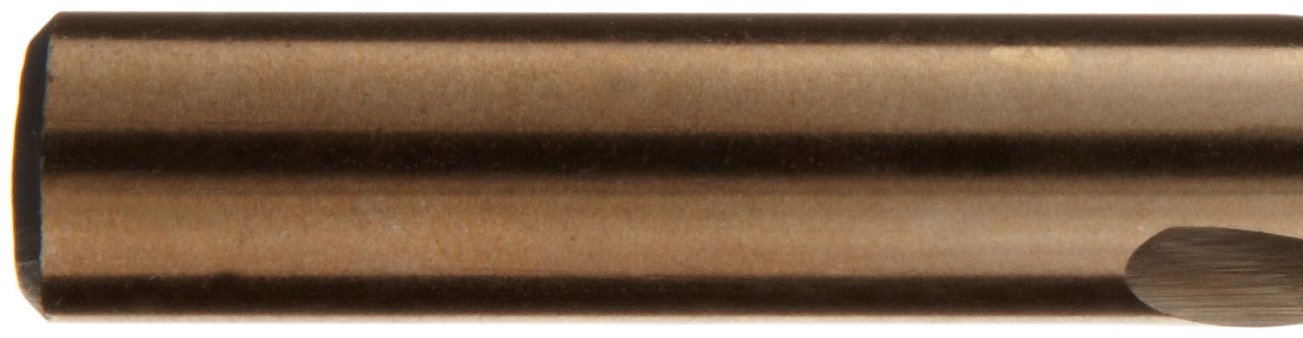

This Precision Twist C29M40CO short length drill bit set contains 29 cobalt steel drill bits, including inch sizes 1/16" through 1/2" in 1/64" increments, with a bronze oxide finish and a 135-degree split point for increased rigidity in heavy feed-rate drilling applications on hard ferrous materials. The cobalt steel provides extended tool life compared to high-speed steel drill bits and maintains the tool's toughness and hardness even in high drilling temperatures. The bronze oxide finish acts as a lubricant and provides wear resistance. Compared to standard drill bits, these tools have a thicker web for increased strength and rigidity. The self-centering 135-degree split point penetrates hard material without a pilot hole and produces smaller chips, which are less likely to clog a hole than a 118-degree point. These short length drill bits have a drilling depth of up to 2.5 times their diameter. The round shank accommodates most drill chucks. The set comes in a metal index case with labeled compartments for identification and organization. Drill bits conform to American National Standards Institute (ANSI) standards.Drill bits are cutting tools used to make holes in a range of materials using machines such as handheld portable drills, machining centers, and lathes. Drill bits come in a variety of lengths and types, the most common of which is the twist drill bit. The round, twisted shaft of the twist drill bit typically has two cutting edges and flutes. The helical twist of the flutes brings chips up and away from the cutting edges and allows for coolant to reach the cutting edges. Jobber length twist drill bits, the most common length of twist drill bit, offer a good compromise of length and reach to work with the widest range of materials and applications. Mechanic's length twist drill bits (also called maintenance length) are a little shorter than jobber length and less prone to deflection when drilling. Short length twist drill bits (also called stub or screw-machine length) are the shortest and stiffest twist drill bits, helping to reduce the chance of deflection or breakage when drilling. Reduced shank drill bits (also called Silver and Deming drill bits) have a shank that is smaller in diameter than its shaft, permitting drilling machines with either a 1/2" or 3/4" drill chuck to create large holes. Long length twist drill bits (also called taper length) are a little longer than jobber length, allowing for deeper holes and longer reach. Extra long twist drill bits (also called extension) are longer than long length twist drill bits for greater reach or for drilling deeper holes.Dormer Pramet manufactures cutting tools under the following brands: Precision Twist Drill, Dormer, Union Butterfield and Pramet. The company has locations around the world, and provides tools adhering to ANSI, NAS, and DIN standards.What’s in the Box?29 drill bits, inch sizes 1/16" through 1/2" in 1/64" incrementsMetal case

• Set of 29 short length drill bits includes inch sizes 1/16" through 1/2" in 1/64" increments
• Cobalt steel provides extended tool life compared to high-speed steel drill bits when drilling hard materials
• Gold oxide finish lubricates and provides wear resistance on ferrous materials
• Self-centering 135-degree split point penetrates hard material without a pilot hole and produces small chips to reduce clogging
• Drill bits conform to ANSI standards
