Toroidal Transformer Toroidal Transformer 300W Dual 18V + Dual 12V Ring Power Transformer for high-end Audio Copper Wire

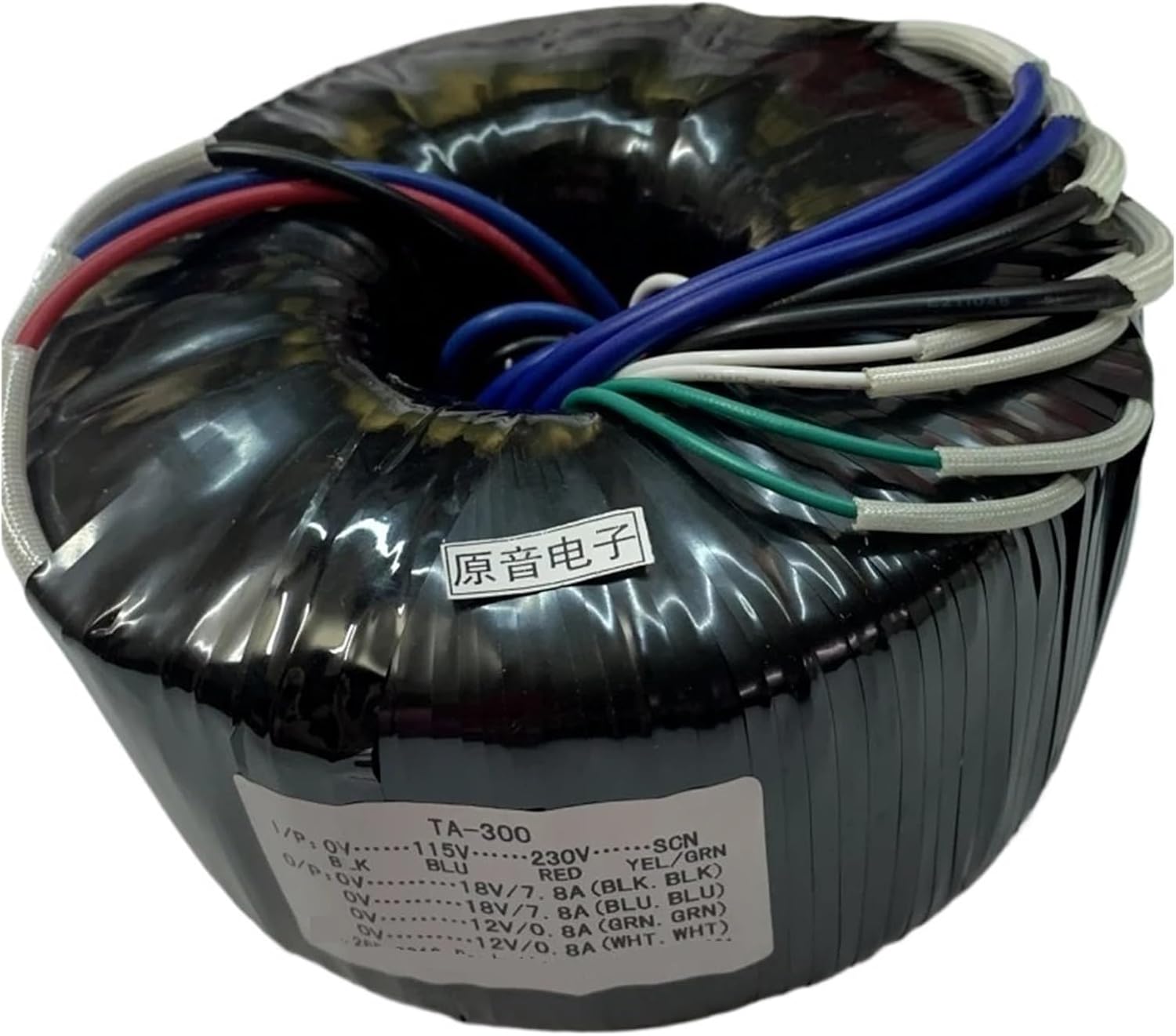

Toroidal transformer 300W dual 18V + dual 12V ring power transformer for high-end audio copper wireApproximate size: 125MMX, height 63MM, weight approximately: 3.5KGPrimary: 0V-115V-230V Secondary: Dual 18V (7.8A) 4 wires + Dual 12V (0.8A) 4 wires,Equipped with 2 pieces of gaskets, 1 piece of iron plate, 75MM X1 piece of gong wire, and about 7.8MM diameter of the fixing screw.300W 18VX2+12VX2Primary: 0V black BLK-115V blue BUL-230V red REDSecondary 0-18V (2 black wires) 0-18V (2 blue wires)0-12V (2 green lines) 0-12V (2 white lines)REDredBLK blackBLU blueWHTwhiteGRN greenNote: The double group is 4 lines. If you want to use 3 lines,Lay 4 wires side by side, take the 2 wires of different colors in the middle and connect them as ground wires.Then measure 2 wires on 2 sides and the output will be about 36V (that is, the original main voltage is 18V)Two wires of different colors are connected together to form a ground wire, indicating that 0V is connected correctly. If it is not 36V, another line must be swapped. (For example: black 18V-(black blue 0V)-blue 18V)Origin : China

• 【Product Function】：Main functions include voltage conversion, electrical isolation, signal transmission stability and protection function.
• 【Product Design】: Made of high quality materials, high temperature resistance, high temperature resistance, flame retardant, low.
• 【Product Features】：Small size, light weight, high efficiency, low loss, high reliability, etc.
• 【Application Scenario】: DIY speakers, amplifiers, subwoofers and other music equipment.
• 【Easy to install】: mounting plate, easy to install
