W680 12 Bay NAS Motherboard, Micro ATX Mainboard LGA1700, 4 x ECC UDIMM DDR5, Barebone, 3 LAN (vPro 2.5GB + 10GB + 2.5GB), 3 x M.2 NVMe Slot, 2 x PCIe x16, 4USB3.2, 5 Display
5.0 (28 items)
Limited Time SaleUS$203.96 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219745000 | Release Date | 2026/05/03 | List Price | US$135.97 | Model Number | 219745000 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

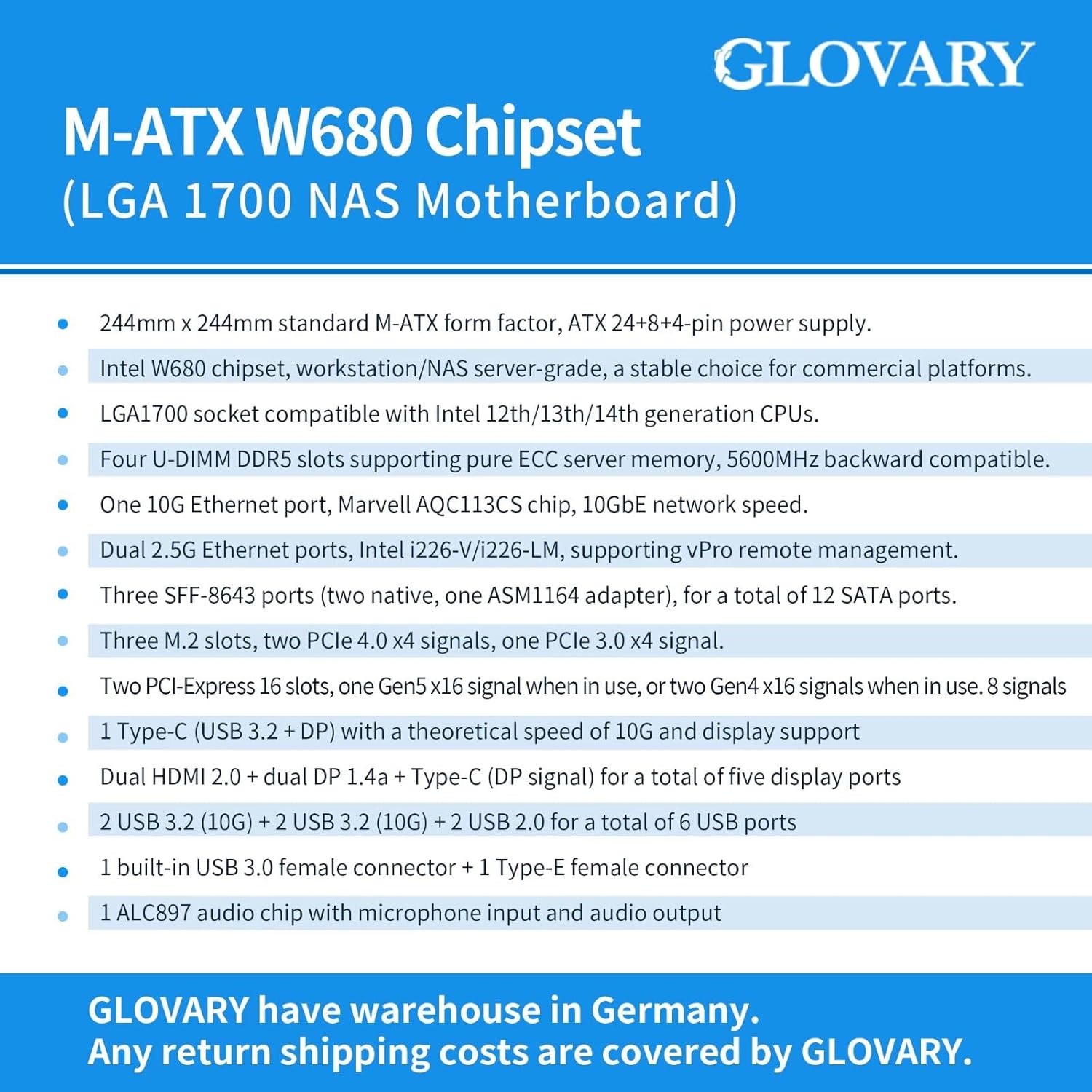

Processor: LGA1700 socket compatible with 12th/13th/14th Gen Desktop CPU Memory: 4 x U-DIMM DDR5 4800/5200/5600MHz memorry, Max 128GB (4 x 32GB), supports ECC Storage: 3 x M.2 2280 NVMe SSD slots(2 PCIe 4.0 x4 signals, 1 PCIe 3.0 x4 signal), 3 x SFF-8643, expandable to 12 SATA3.0 signals, 2 x PCIE x16 slot (PCIe5.0 x16 signal when one is used, PCIe4.0 x8 signal when both are used) LAN: 1 x 10GbE RJ45 LAN (AQC113-B1-C rate adaptive 1G/2.5G/5G/10G), 1 x i226V 2.5Gbe LAN, 1 x i226-LM 2.5Gbe LAN supports vPro remote management Display: 2HD2.0+2DP+USB-C 4K/8K@60Hz 5 display Cooling: Fanless, compatible with LGA1700 115x series CPU cooler I/O Interface: 1 x 10GB RJ45 LAN, 1 x vPro 2.5G LAN, 1 x i226V 2.5G LAN, 4 x USB3.2 10Gbps, 1 x USB-C 10Gbps, 2 x USB2.0, 2 x DP, 2 x HD2.0, 1 x GPIO, 1 x MIC in, 1 x Line out, 1 x Line in Power: ATX 24+8+4Pin power supply Working Temperature: 0~60℃ Size: 244x244 MM Weight: 0.75 KG Packing List: 1 x Glovary NAS Motherboard, 1 x Warranty Card Function: Support Auto Power On, Wake on LAN, GPIO Feature: W680 NAS Motherboard 3 LAN 12 Bay
- W680 Mainboard LGA1700 Socket - W680 NAS motherboard with LGA1700 Socket is compatible with Core i3/i5/i7/i9 12th/13th/14th Gen desktop processors (recommend T-series desktop processors, low power for long-term use, NOT recommend K-series processors)
- 12Bay + 4DDR5 + 3NVMe - Micro ATX mainboard with 3 x SFF-8643, expandable to 12 x SATA3.0 signals via 1 to 4 SATA cables (Included). 4 x U-DIMM DDR5 4800/5200/5600MHz SODIMM Slot, support ECC, Max 128GB (4 x 32GB), 3 x M.2 2280 NVMe(2 PCIe4.0 x 4 + 1 PCIe3.0 x 4) SSD slot, 2 x PCIE x16 slot (PCle4.0 x8 signal), 2 x PCIe3.0 x 4 slot, easily achieve large capacity data storage
- Dual 2.5GbE + 10GbE LAN - NAS motherboard W680 with 1 x 10GbE LAN (AQC113-B1-C adaptive 1G/2.5G/5G/10G), 1 x vPro i226-LM 2.5G LAN (Support remote management), 1 x i226V 2.5G LAN, ideal for NAS, VMs, home server, compatible with TrueNAS, UNRAID, PVE, ESXi and other open-source OS
- 2HD+2DP+USB-C 5 Display - W680 motherboard with 2HD2.0+2DP+USB-C 4K/8K@60Hz 5 display port, ideal for boosts productivity, multitasking, and media workflows. 4 x USB3.2 Gen2 (10Gbps) for data transfer or external drives
- Important Notes - 244 x 244mm Mini ATX mainboard requires ATX24Pin (motherboard power supply) + ATX8Pin+ATX4Pin (CPU enhanced power supply), compatible with LGA1700 series coolers. The first boot will take 5-10 minutes for the RAM to be detected. Need PDF manual please let us know
| Brand | Glovary |
|---|---|
| RAM Type | DDR5 RAM |
| Model Name | LGA1700-3LAN12BAY-0-0 |
| Style Name | W680 Mainboard with 3 Cable |
| Aspect Ratio | 16:9 |
| Manufacturer | Glovary |
| Memory Speed | 5600 MHz |
| Model Number | LGA1700-3LAN12BAY-W680-0-0 |
| Item Dimensions | 9.61 x 9.61 x 1.18 inches |
| Processor Brand | Intel |
| Processor Count | 1 |
| Total Usb Ports | 7 |
| CPU Model Number | W680 |
| Processor Socket | LGA 1700 |
| Compatible Devices | NAS |
| Hardware Interface | DisplayPort, Ethernet, HDMI, USB |
| Memory Clock Speed | 5600 MHz |
| Additional Features | 12Bay + 4DDR5 + 3NVMe |
| Hard Disk Interface | Serial ATA-600 |
| RAM Memory Technology | DDR5 |
| Memory Slots Available | 4 |
| Graphics Card Interface | PCI Express |
| Ram Memory Maximum Size | 128 GB |
| Total Number of HDMI Ports | 2 |
| Number of Component Outputs | 5 |
